How To Install Fontana Shower Mixer 2/3/4/5 Way Shower Mixing Valve Cold And Hot Water Switch Valve Shower Room Faucet Accessories | FS6118RM

Easy step by step Installation Instructions for Shower Mixer 2 - way

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower
mixer

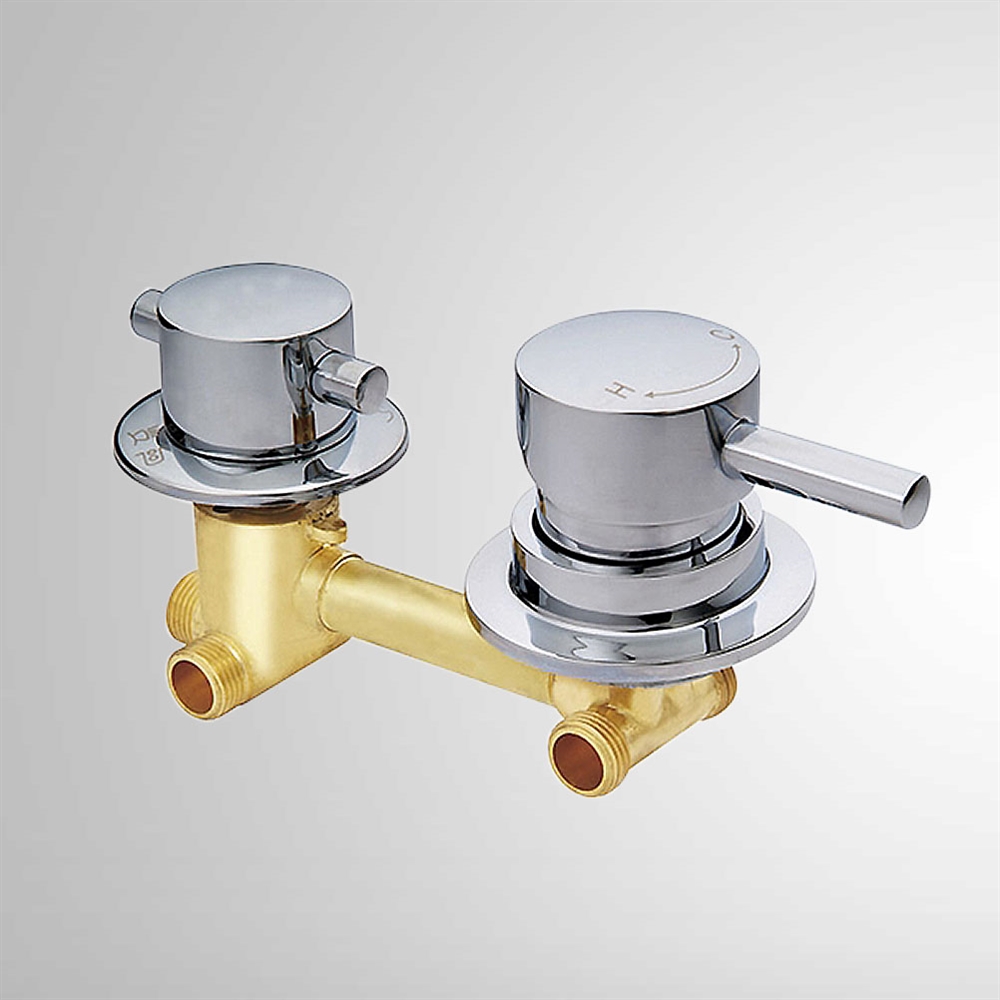

Fontana Shower Mixer 2/3/4/5 Way Shower Mixing Valve Cold And Hot Water Switch Valve Shower Room Faucet Accessories
Easy step by step Installation Instructions for Thermostatic Shower Mixer 5- way
Easy step by step Installation Instructions for Thermostatic Shower Mixer 3 - way
Easy step by step Installation Instructions for Thermostatic Shower Mixer 4 - way

Shower Mixer Installation Instruction

shower mixer shower mixer
Step 1: mixer Step 2:




shower mixer shower mixer
Step 3: Step 4:



1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.


Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

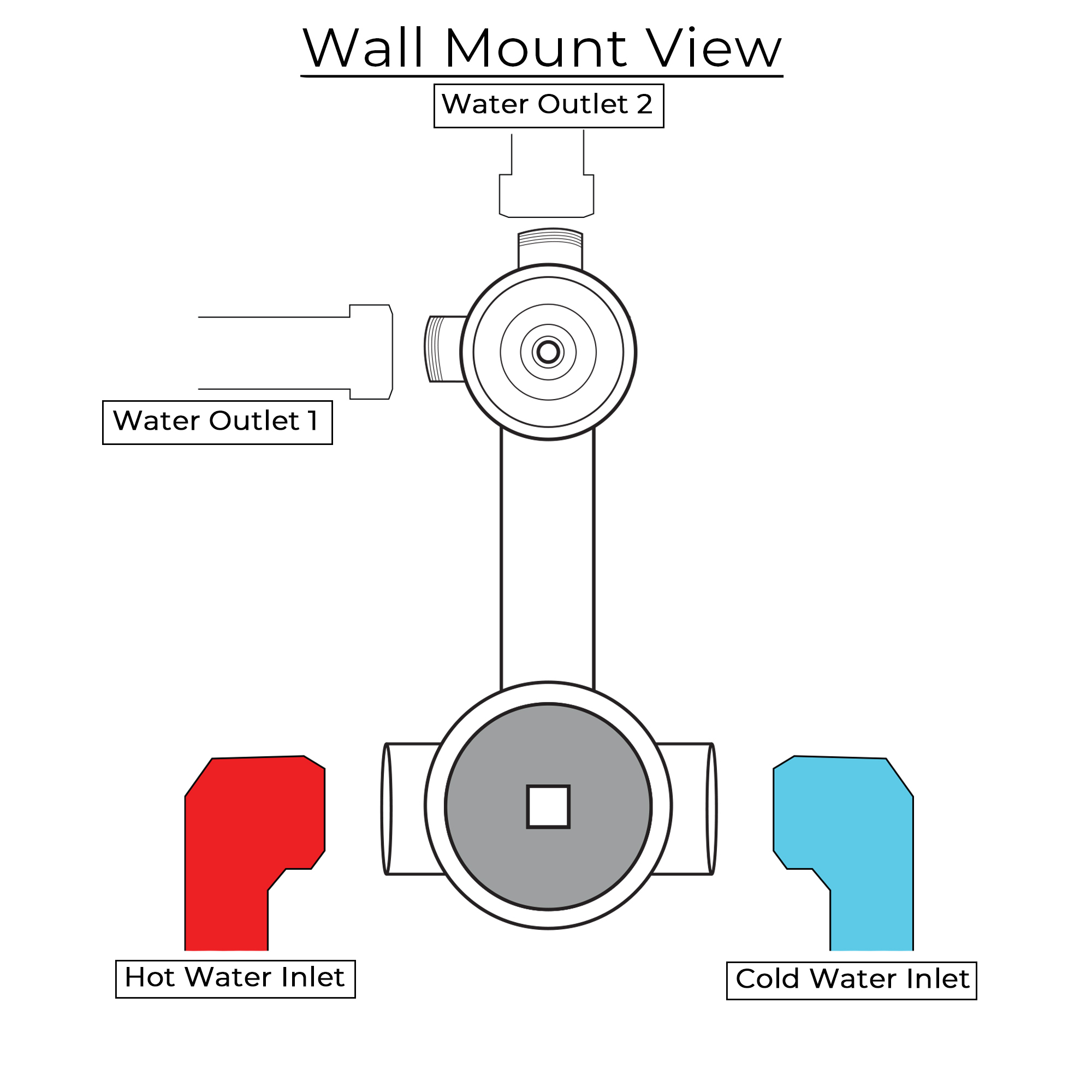

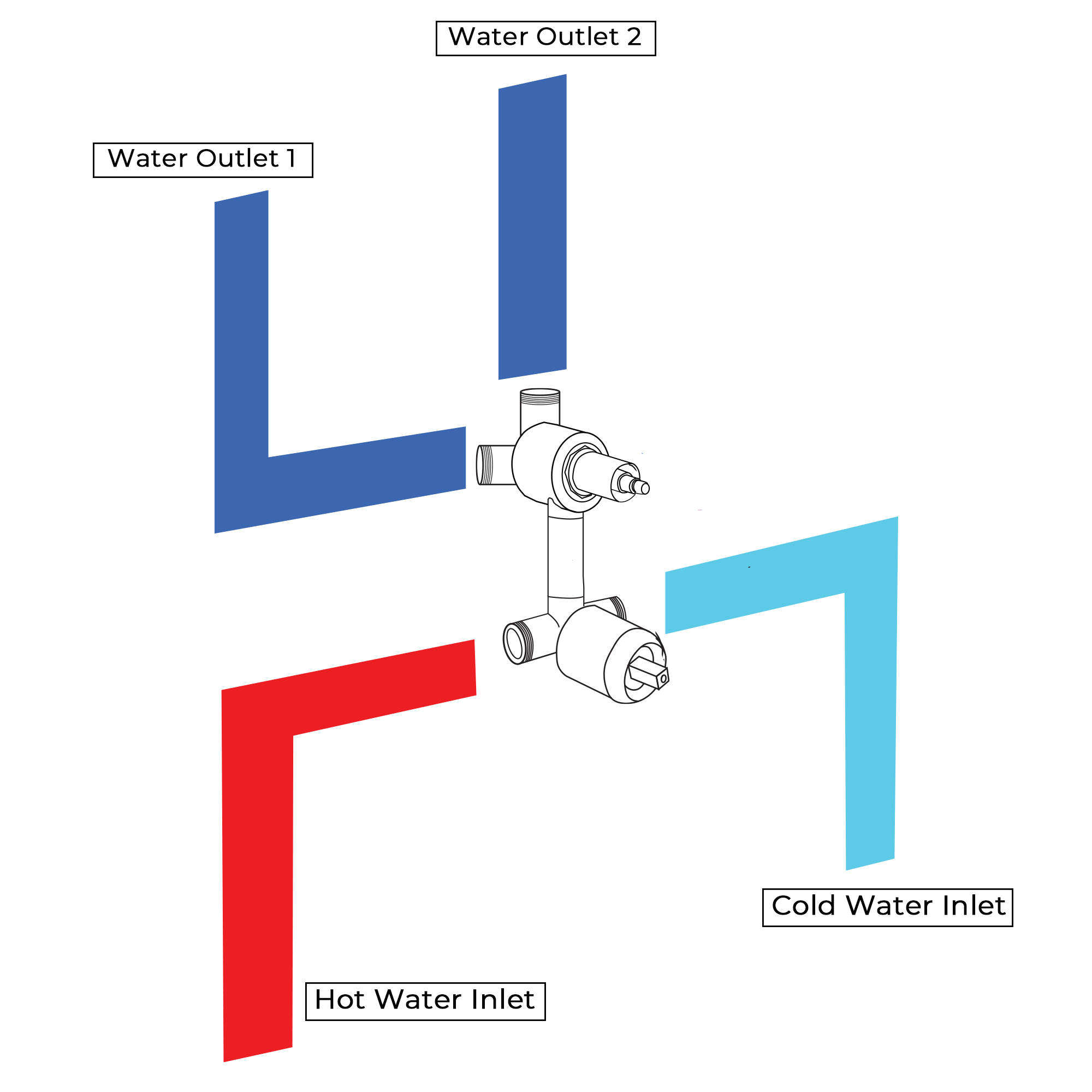

Shower Mixer Wall Mount View Connection Shower Mixer Connection Overview

Shower
Mix

























Fontana Shower Mixer 2/3/4/5 Way Shower Mixing Valve Cold And Hot Water Switch Valve Shower Room Faucet Accessories

This Fontana thermostatic Shower Mixer valve is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the most trendiest finishes across decor styles in the bathroom.

Features:

  • Brand Name: FontanaShowers
  • Shower Mixer Model Number: FS6118RM
  • Type: Thermostatic Mixing Valve
  • Control Type: Dual Holder Dual Control
  • Shower Mixer Control Knob Shape: Round
  • Number of Handle: Dual Handle
  • Feature: Water Saving
  • Surface Finish: Chrome
  • Accessories: Water-Saving Controller
  • Type: Fixed Rotatable Type
  • Material: Brass
  • Complete Thermostatic Shower Mixer Valve & Trim
  • Fontana Shower Mixer 2/3/4/5 Way Shower Mixing Valve Cold And Hot Water Switch Valve Shower Room Faucet Accessories


    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
