 Fontana sensor faucets for commercial use such as public office buildings, restaurants, and malls.
Function: Touchless faucets with motion sensor motion technology! Water-saving: water flows out when your hands approach it and stop immediately Hygienic: self-open and close to free hands from any touching, which can efficiently avoid bacteria mutual infections Intelligent: with its micro-computer to control its action, the faucet can self-adjust its best detection zone as per the color and shape of lavatory Low power consumption, 4AA alkaline batteries can be used for 2 years at 200 cycles a day Convenient to maintain: There is a strainer inside to prevent sundries from entering the solenoid valve and the strainer is easy to clean

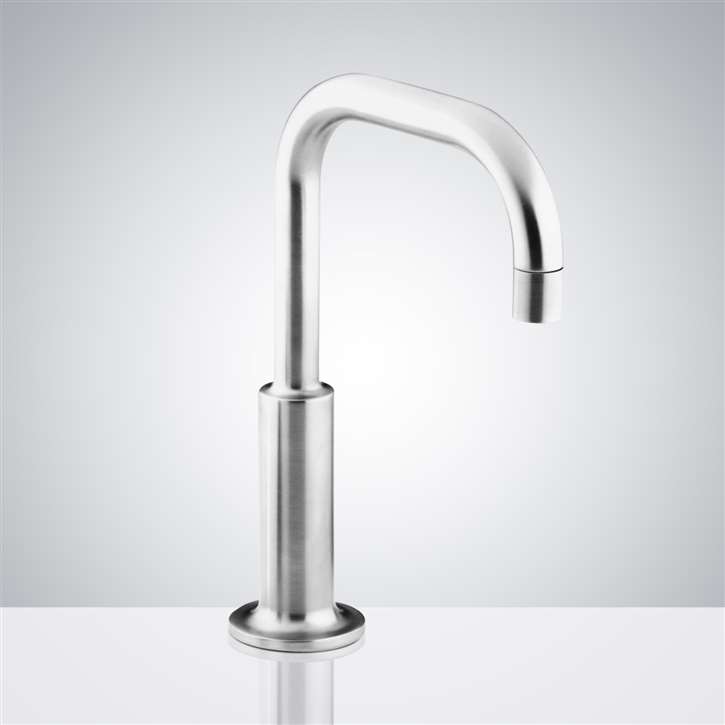

The Fontana Commercial Automatic Sensor Activated Touchless Faucet
|
Premium touchless hardwired and battery-operated faucet. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.
Fits all US standard plumbing.
Uses 4AA Alkaline Batteries (purchase separately).
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
- Sensor faucet complete motion detection operation.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Easy to Install - Instructions Included
- Water-resistant solenoid enclosure
- Advanced energy-saving design for long-lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant
- Can be installed easily in new or upgraded retrofit commercial restrooms.
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all US standard plumbing.
|
|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
Sensor Activated Faucet Special Features
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant.
- Batteries life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Electronic Faucet Specifications
|
Diameter of inlet pipe
|
DN15
|
|
Diameter of outlet pipe
|
DN15
|
|
Water Pressure
|
0.05Mpa - 0.7Mpa
|
|
Power and Voltage
|
DC.6V / AC.110-220V - 50/60Hz
|
|
Power Consumption
|
0.5MW
|
|
Detection Zone
|
Factory set 25cm/10" (based on standard inductive board)
|
|
Ambient Temperature
|
1 - 45 °C / 33.8 -113 °F
|
|
Degree of protection by enclosure
|
1P56
|
|
Battery
|
4 x 'AA' size cells
|
|
Operational water pressure range
|
0.05 - 0.6MPa
|
|
Water supply pipe size
|
DN15
|
Fontana Sensor Faucet Features
- Infrared sensor operated, touch-free operation
- Water Conserving
- Waterproof sensor
- Battery low LED light indicator
- Advanced circuit design saves electricity and water
- Advanced energy saving design for long lasting battery life.
- Three-year battery life based on 3,000 hand washes per month
- Sensor is not affected by reflections or abnormal lighting
- Self-adapting sensors range
- Long life durable body
- Power Supply Options
- Hands-Free Sanitary Operation
- ADA Complaint
- Vandal-Resistant Aerator
- Automatic 30-Second Time Out
- Highly-Polished, Chrome Plated Cast Brass Bodies
- Low Battery Indicator Light
- In-Line Filter
- Factory Set Sensor Range
Fontana Automatic Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
 |
|
 |
|
