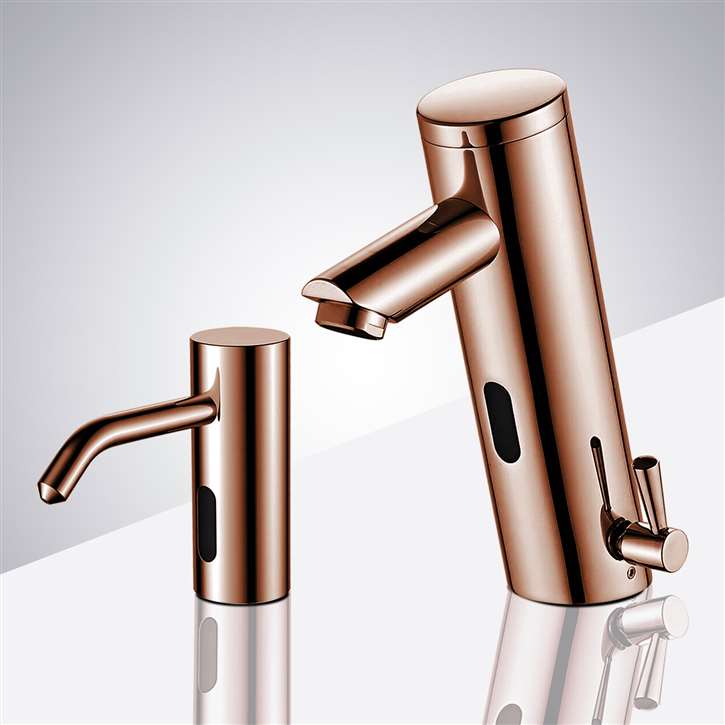

Commercial Rose Gold Automatic Temperature Control Thermostatic Sensor Tap and Matching Soap Dispenser

Alternative Views:

Retail Price: $2,720.34

Sale Price: $2,013.05

Savings: $707.29

Sale Price: $2,013.05

Availability: Usually Ships in 2 to 3 Weeks

Product Code: FS-505RG

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

Chrome

Brushed Nickel

Commercial Rose Gold Automatic Temperature Control Thermostatic Sensor Tap and Matching Soap Dispenser

Platinum Commercial Temperature Control Automatic Touchless Sensor Faucet with Mixing Valve Platinum Commercial Automatic Temperature Control Thermostatic Sensor Tap B505 Solid Brass Construction - (Available in Oil Rubbed Bronze)

Platinum Commercial Automatic Temperature Control Thermostatic Sensor Tap B505 Solid Brass Construction - (Available in Oil Rubbed Bronze)

Fits all standard US plumbing.
Uses 4AA Alkaline Batteries (purchase separately).
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi
Sensor Faucet Applications: Residential & Commercial.
Touchless Operation
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Rose Gold Finish
Easy to Install - Instructions Included
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
ADA Compliant
Can be installed easily in new or upgraded retrofit commercial restrooms.
Can easily be installed in new or retrofit applications
Usage: Commercial / Residential
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Platinum Temperature Control Sensor Faucet Special Features:

Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Diameter of inlet pipe DN15
Diameter of outlet pipe DN15
Water Flow Rate: 1.3 GPM (gallons-per-minute)
Power DC.6V
Detection Zone Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature 1 - 45 ℃ / 33.8 -113 °
Degree of protection by enclosure 1P56
Usage: Commercial / Residential

Sensor Faucet Specification:

Overall Height: 7" (measured from counter top to the highest part of the faucet)
Spout Height: 3-1/2" (measured from counter top to the spout outlet)
Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
Mounting Type: Single hole
Number of Holes: Required for Installation: 1
Faucet Centers (Distance Between Handle Installation Holes): Single Hole
Flow Rate: 1.3 GPM (gallons-per-minute)
Maximum Deck Thickness: 1-5/8"
Infrared sensor operation with temperature control.

Sensor Faucet Special specification

The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enough cold and hot to prevent scalding.
Installation; Fontana touchless faucet is easy-to-install design!
Easy servicing
Version with mixer to adjust the temperature.
The Rose Gold finish will not fade, tarnish or corrode for the lifetime of the faucet.
6V battery or electrical connection version available
Solenoid valve inside the product
Operates with low and high pressures (0.5 to 7Bar)
Range adjustment
Two products in 1: the thermostatic mixing valve and operates by an infrared sensor

Automatic Rose Gold Temperature Control Faucet and Matching Soap Dispenser

The Platinum Sensor Faucet an electronically controlled faucets that eliminate the need to touch or turn handles. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Bathroom sensor faucets are anti-erosion, anti-abrasion and high strength. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Residential, Commercial use & ADA

This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation

Specifications and Dimensions

Spout	Chrome Plated Solid Brass
Power	4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy	250,000 cycles
Solenoid valve	6 Volt magnet latching
Working Water Pressure	1 PSI -100 PSI
Supply Inlet Size	1/2” NPT Male
Water Temperature Control	Built-in Pop-Up Drain
Sensor type and Location	Active Infrared, Neck mount Sensor
Microprocessor	Digital, Pug And Play
Sensing Range	2” to 6”
Response Time	0.3 Second
Shut-Off Delay Time	2 Seconds
Anti vandalism maximum Running Time	60 Seconds
Particle filter size	50
Mesh Aerator	2.2 GPM Standard
