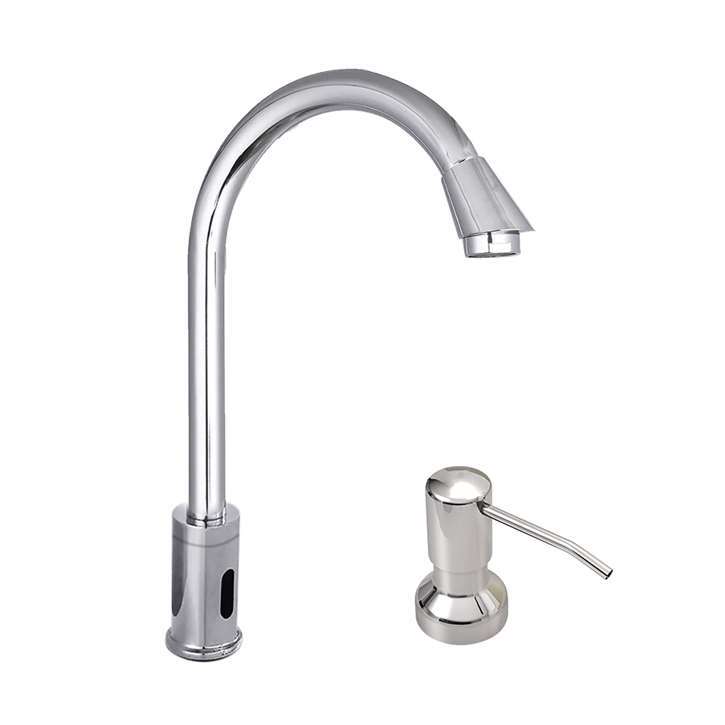

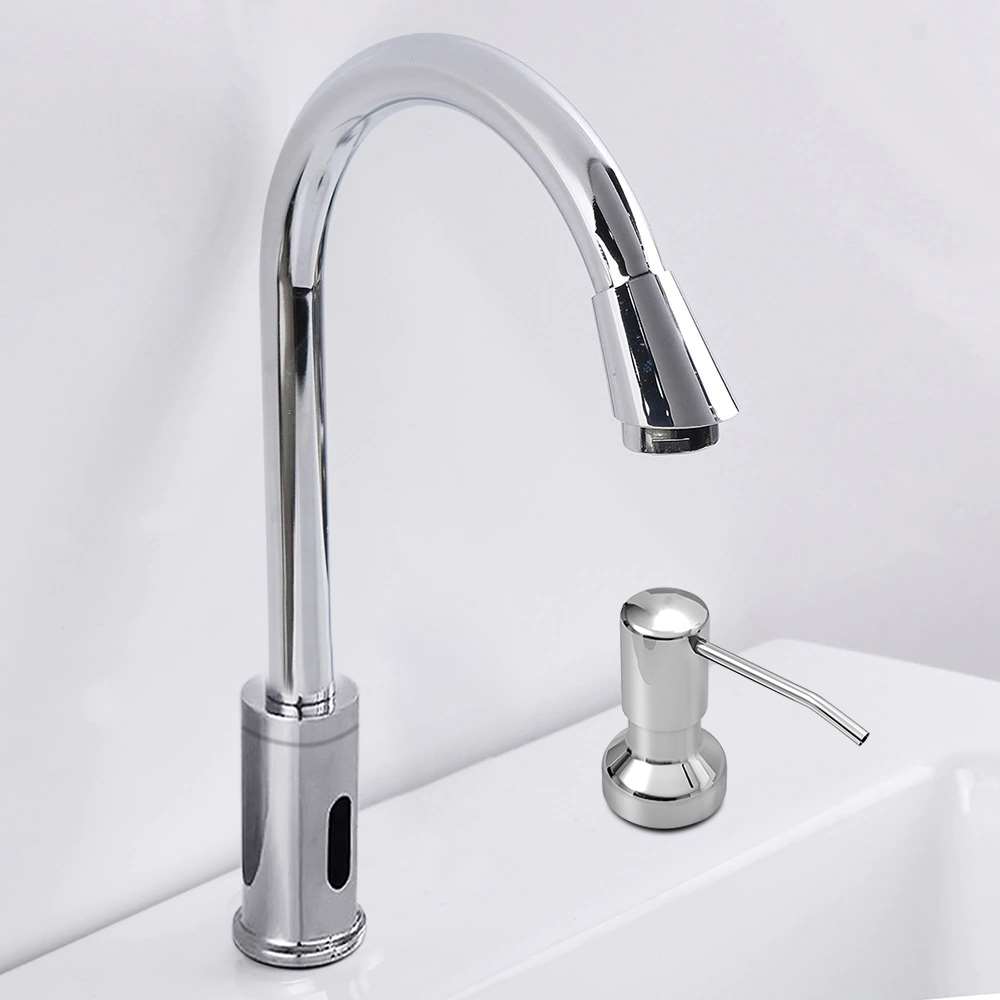

 Fontana Commercial Goose Neck Chrome Automatic Touchless Sensor Faucet with Manual Soap Dispenser
Constructed of brass and complimented with a beautiful chrome finish, this automatic faucet prevents cross-contamination of germs
and bacteria by eliminating the need to touch the faucet or handles. Fontana commercial restroom faucets and soap dispensers are tested for durability, they can withstand high traffic repetitive use and will hold up well against wear and tear even with thousands of daily uses. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (not included). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Fontana Commercial Goose Neck Sensor Faucet Details
- Motion detection provides touchless operation.
- Sensitive Sensor with Infrared AI Smart-Chip.
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Sensor faucet comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
- AC/DC power option.
- Fit for high traffic commercial applications.
- ADA Complaint
- Can be installed easily in new or upgraded retrofit bathrooms.
- Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient
to maintain; with built-in strainer to prevent sundries from entering
the solenoid valve and the strainer is easy to clean.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Usage: Commercial restrooms including high traffic bathroom facilities
- Touchless restrooms operation ideal for commercial use applications in restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
|
|
- Diameter of inlet pipe:
DN15
- Diameter of outlet pipe:
DN15
- Water Pressure:
0.05Mpa - 0.7Mpa
- Power and Voltage:
DC.6V, AC.110-220V - 50/60Hz
- Power Consumption:
0.5MW, <2W
- Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature:
1 - 45 ℃ / 33.8 -113 °F
- Degree of protection by enclosure:
1P56
|
|
|
 |
|
 |
|
