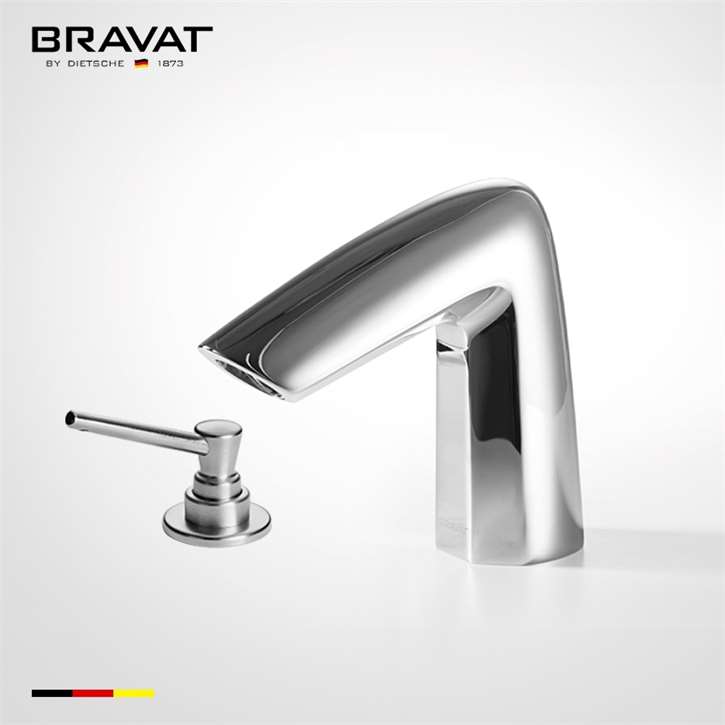

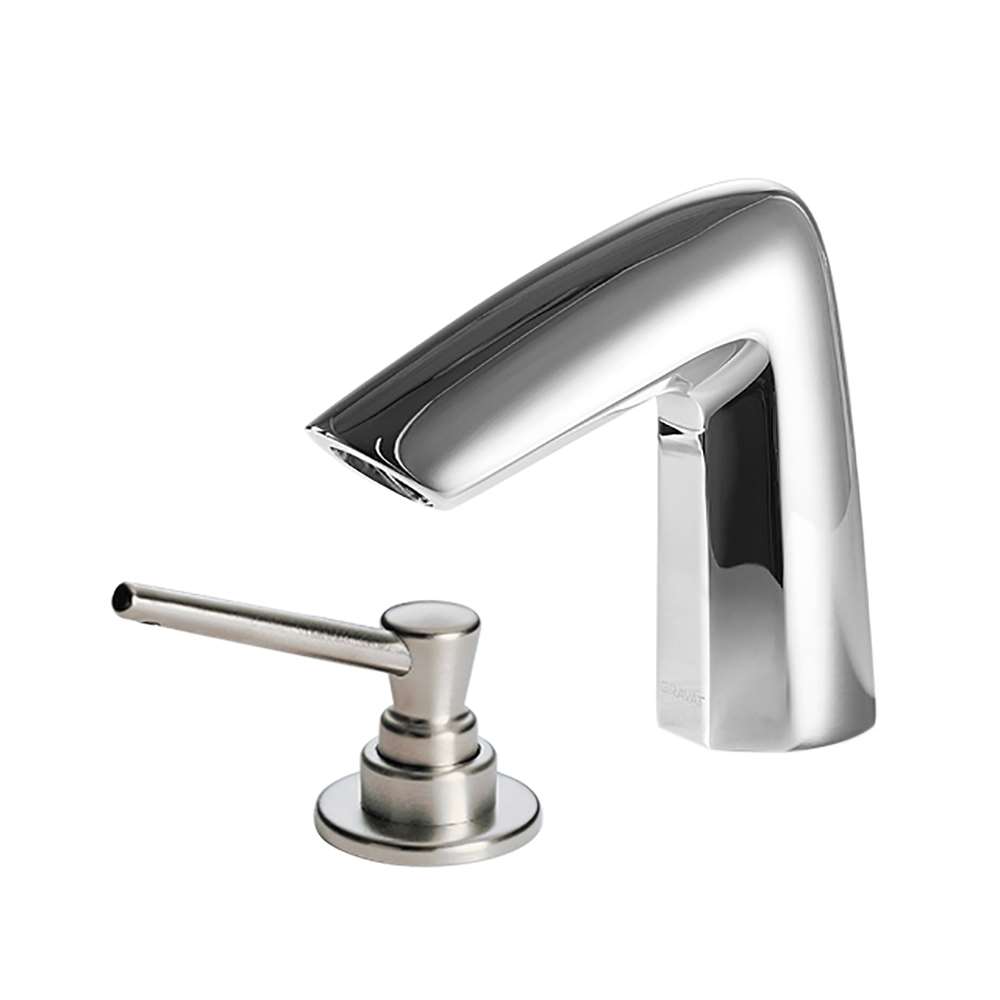

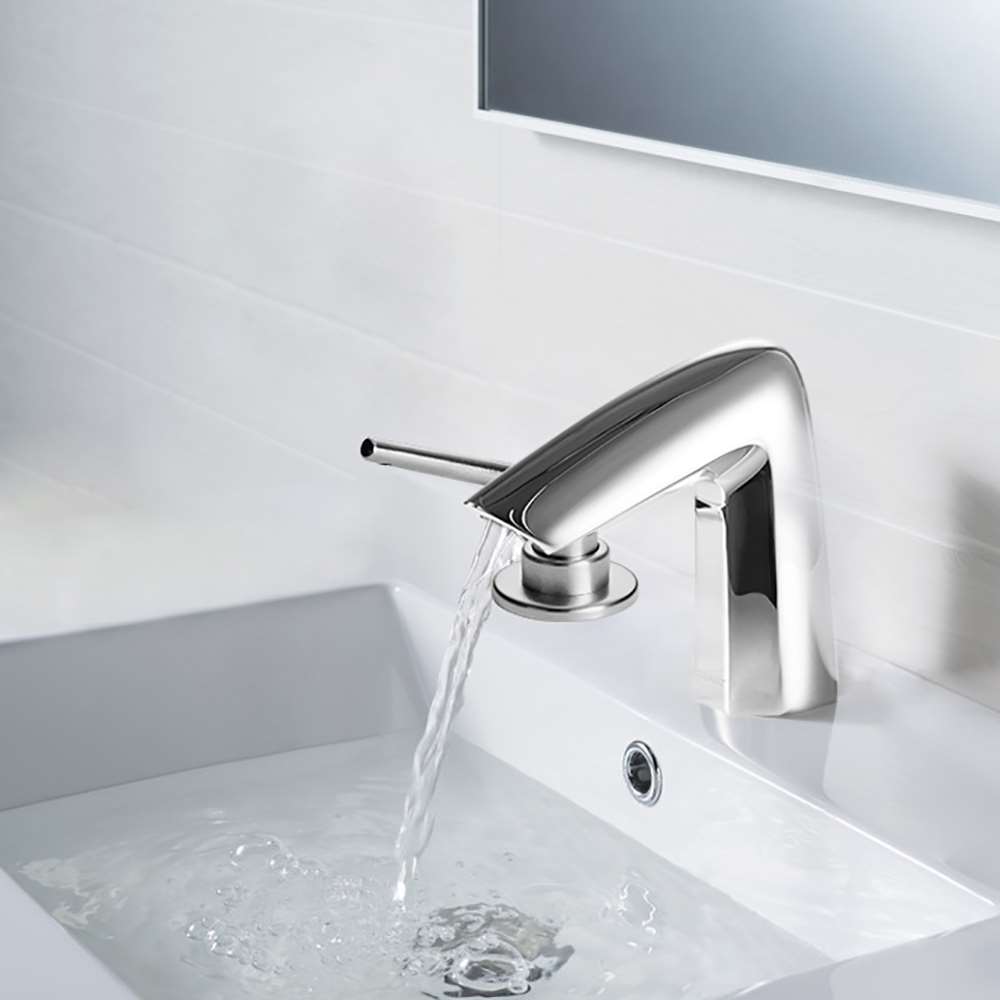

Fontana Le Havre Chrome Automatic Sensor Faucet with Manual Soap Dispenser

Fontana Commercial Chrome Automatic Sensor Faucet with Manual Soap Dispenser

Alternative Views:

Retail Price $745.20

Sale Price: $645.62

Savings: $99.58

Sale Price: $645.62

Availability: Usually Ships in 5 to 10 Business Days

Product Code: FS9539SD

Hot & Cold Option:
		Click to view another style Hand Soap Dispenser
Hand Soap Dispenser:

Qty:

Description

Technical Specs

Extended Information

Fontana Commercial Chrome Automatic Sensor Faucet with Manual Soap Dispenser

Constructed of brass and complimented with a beautiful chrome finish, this automatic faucet prevents cross-contamination of germs and bacteria by eliminating the need to touch the faucet or handles. Ideal for any bathroom sink. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (not included). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

Fontana Commercial Chrome Automatic Sensor Faucet Specifications

Motion detection provides touchless operation.
Sensitive Sensor with Infrared AI Smart-Chip.
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Easy to Install - Instructions Included
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Sensor faucet comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
Fit for high traffic commercial restrooms.
ADA Complaint
Can be installed easily in new or upgraded retrofit commercial bathrooms.
Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Usage: Commercial / Residential
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Diameter of inlet pipe	DN15
Diameter of outlet pipe	DN15
Water Pressure	0.05Mpa - 0.7Mpa
Power and Voltage	DC.6V
Power and Voltage	AC.110-220V - 50/60Hz
Power Consumption	0.5MW
Power Consumption	<2W
Detection Zone	Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature	1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure	1P56
