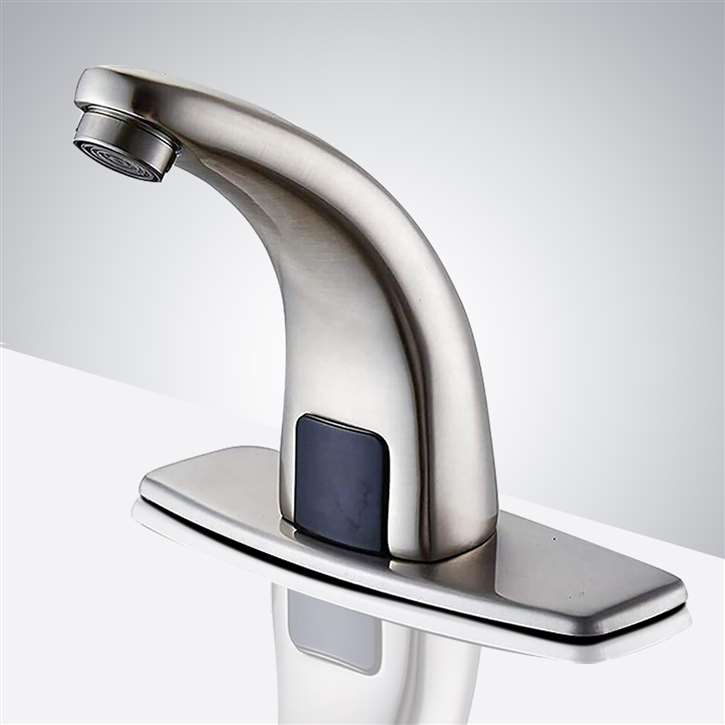

Fontana Melo Automatic Commercial Sensor
Brushed Nickel Faucet

Minimalist design and fluid, contemporary lines combine in this streamlined bathroom faucet. Made from brass in a stylish finish, this set is ceramic disc rough-in valve compatible and requires two faucet holes for installation. Brushed Nickel finish has rapidly become one of the trendiest finishes across décor styles in the bathroom. The contemporary style enhances the look and fits into your bathroom décor with ease, while the deck-mount installation frees up your countertop or sink. Be sure, when it comes to new bathroom sink faucets, FontanaShowers is offering the shape, finish, and styles you're looking for.

Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! The sensor faucet finish is brushed nickel, with a built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation.

Features:

• Brand Name: FontanaShowers®
• Model Number: FS501-BN
• Type: Sink Faucets
• Style: Single Holder Single Hole
• Style: Classic
• Hot & Cold Water: No
• Installation Type: Deck Mount
• Surface Treatment: Electroplated
• Faucet Mount: 4" Center set
• Feature: Sensor Faucet
• Type: Ceramic Plate Spool
• Valve Core Material: Ceramic
• Number of Handles: None
• Usage: Commercial
• Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Sensor Activated Faucet Special Features:

• Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
• Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
• The meaning of the codes is described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• The faucet can be mounted to any sink surface.
• ADA Complaint
• Battery life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
• Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.

• Diameter of inlet pipe: DN15
• Diameter of outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power and Voltage: DC.6V, AC.110-220V - 50/60Hz
• Power Consumption: 0.5MW, <2W
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
