How to install Fontana Thermostatic Shower Faucet Mixing Valve 3 Way Concealed 2 Handles Brass Concealed Valve Wall Mount Chrome Finish | FS-1176

Easy step by step Installation Instructions for 3 Way Wall-Mounted Shower Faucet Mixer Valve

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

Shower
Mixer

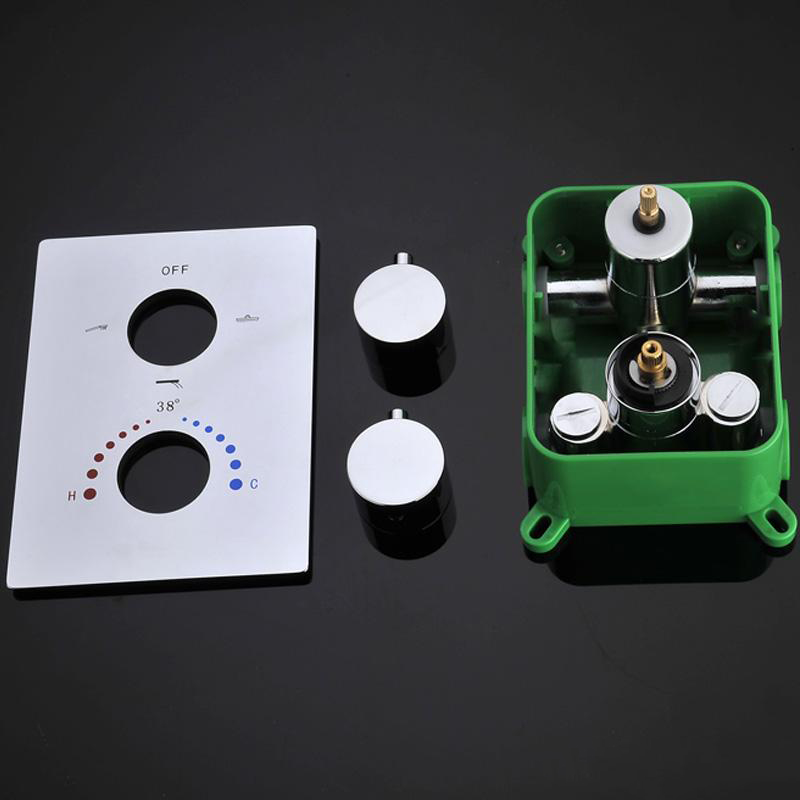

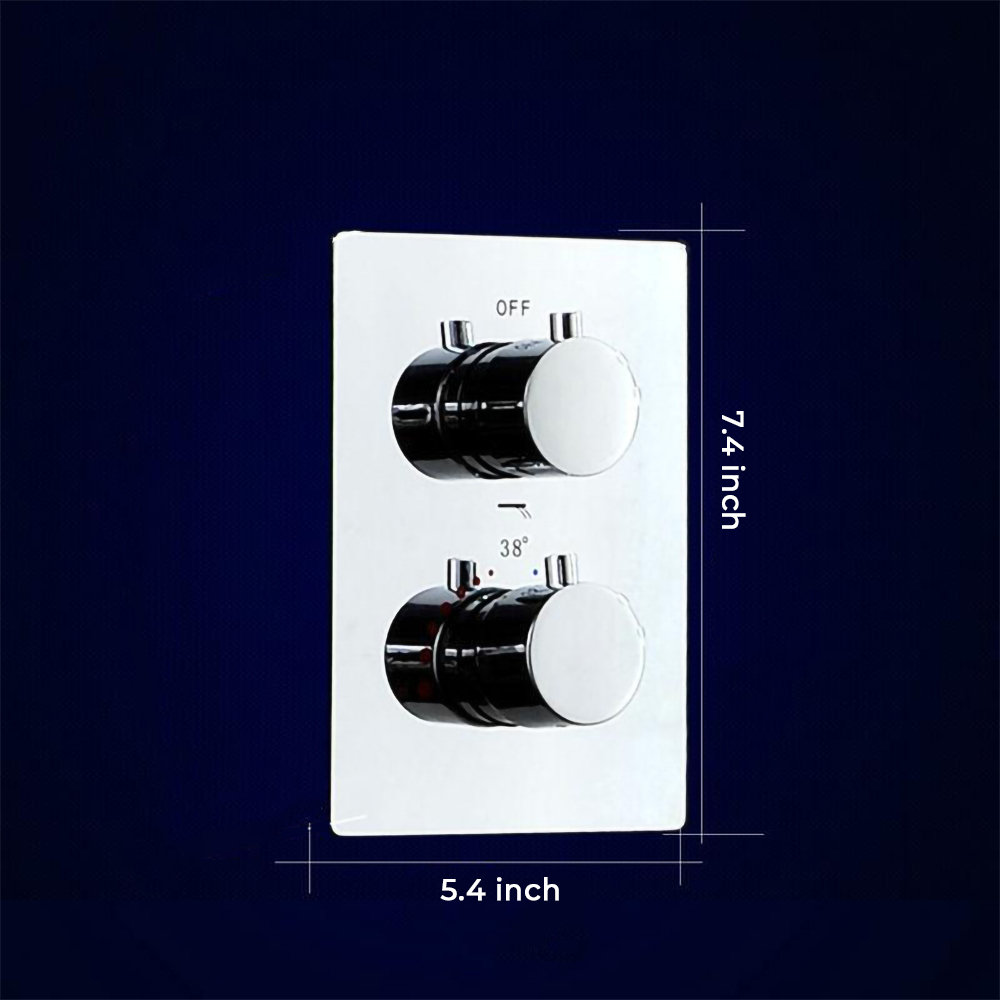

Fontana Thermostatic Shower Faucet Mixing Valve 3 Way Concealed 2 Handles Brass Concealed Valve Wall Mount Chrome Finish

Shower Mixer Installation Instructions

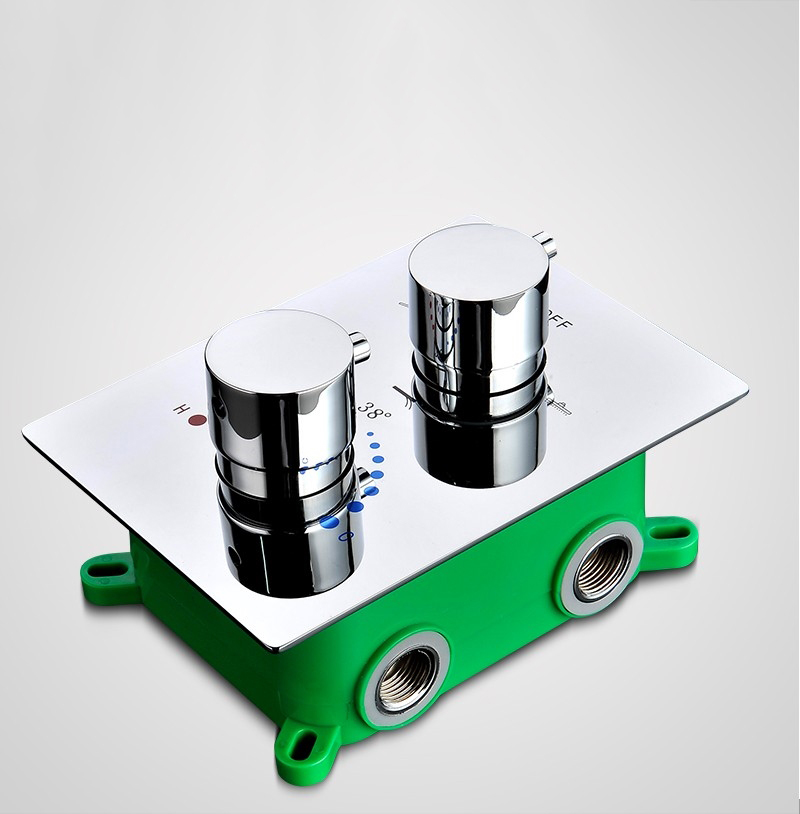

Shower Mixer		Shower Mixer Inlet and Outlet Connections
	Shower Mixer
Shower Mixer

shower mixer		shower mixer
Step 1:	mixer	Step 2:


shower mixer		shower mixer

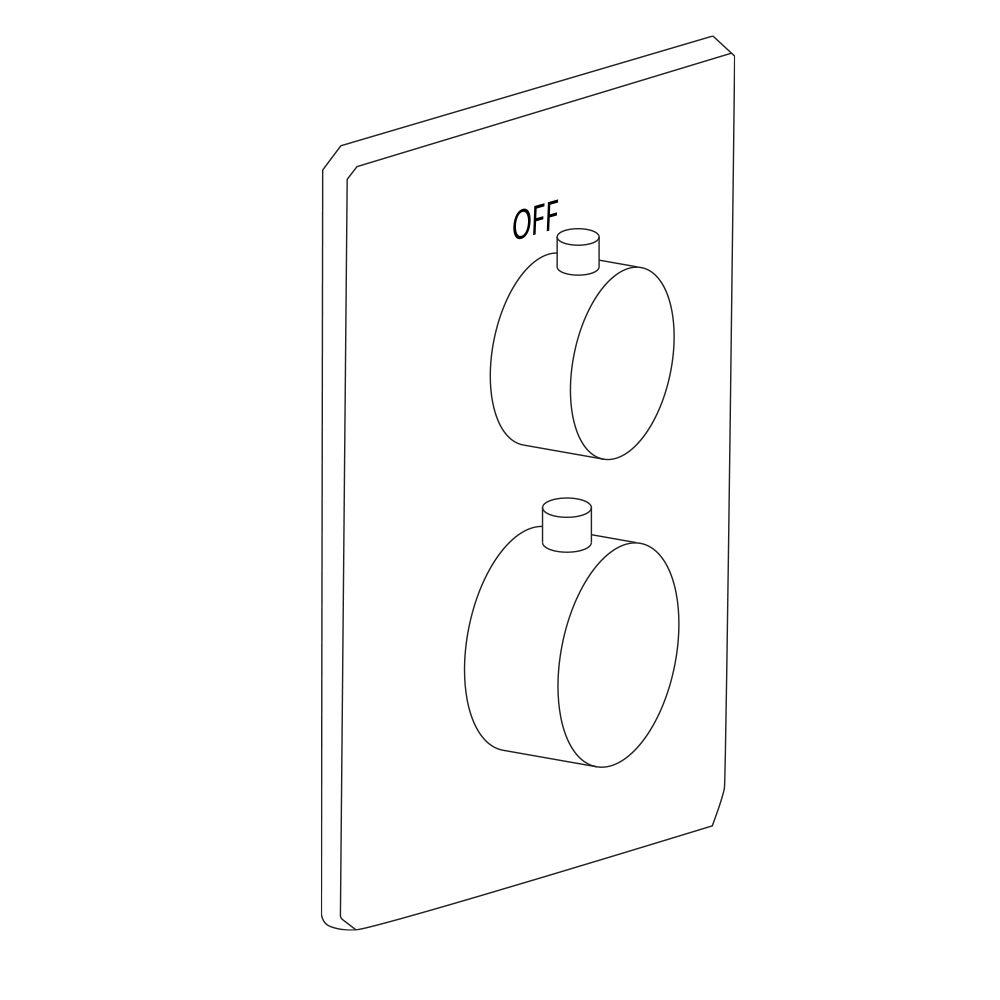

Step 3:		Step 4:

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

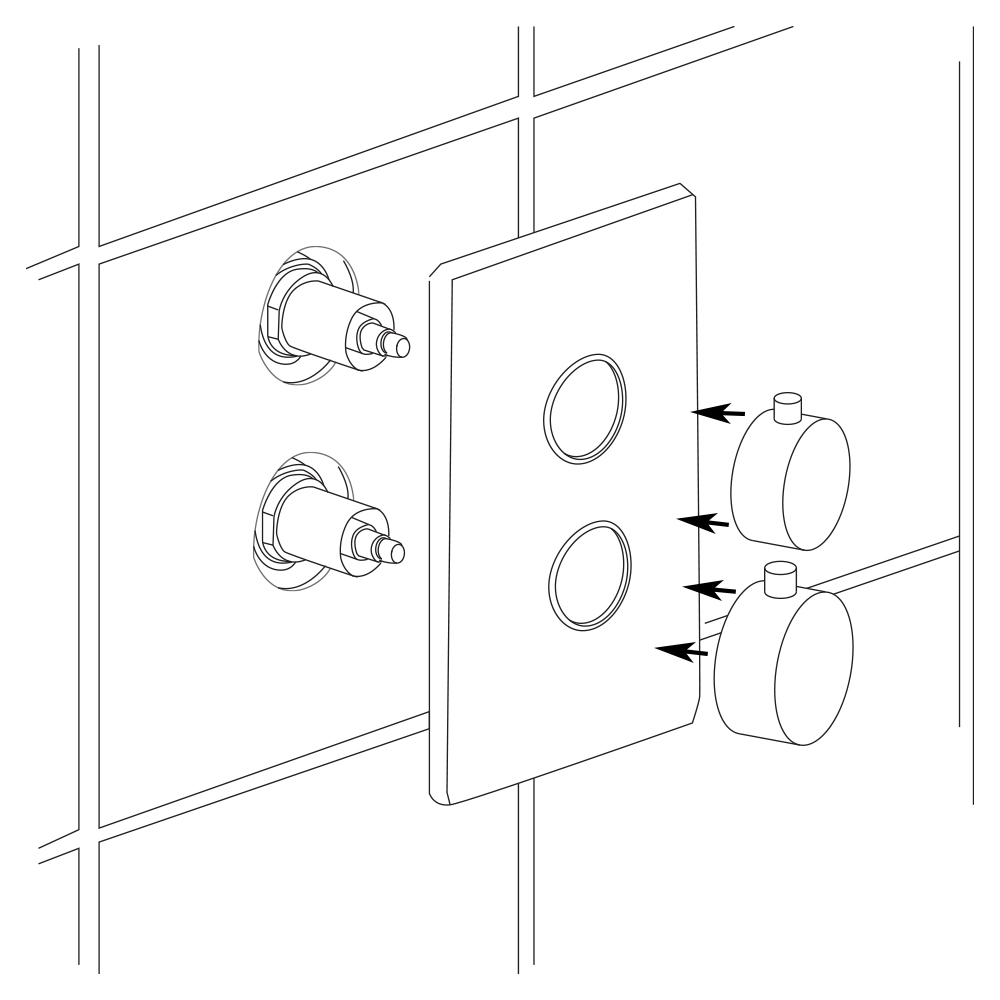

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.

Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.
