How to install Alberni Gold PVD Solid Brass Mixer Bathroom Sink Faucet | FS-03187


Easy step by steps Installation Instructions for Commercial Sensor Faucet

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

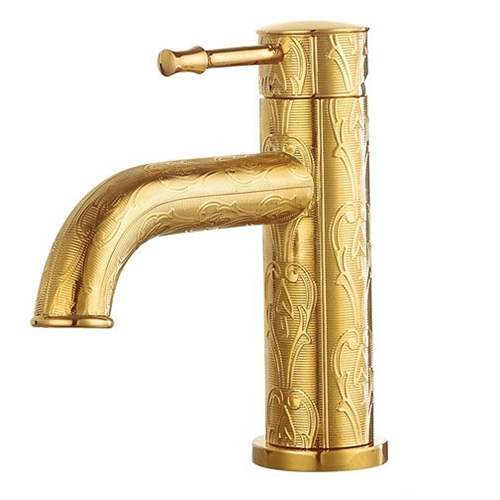

sensor Alberni Gold PVD Solid Brass Mixer Bathroom Sink Faucet

Faucet Installation Instructions


Step 1:sink faucetStep 2:faucet

Step 3:Step 4:

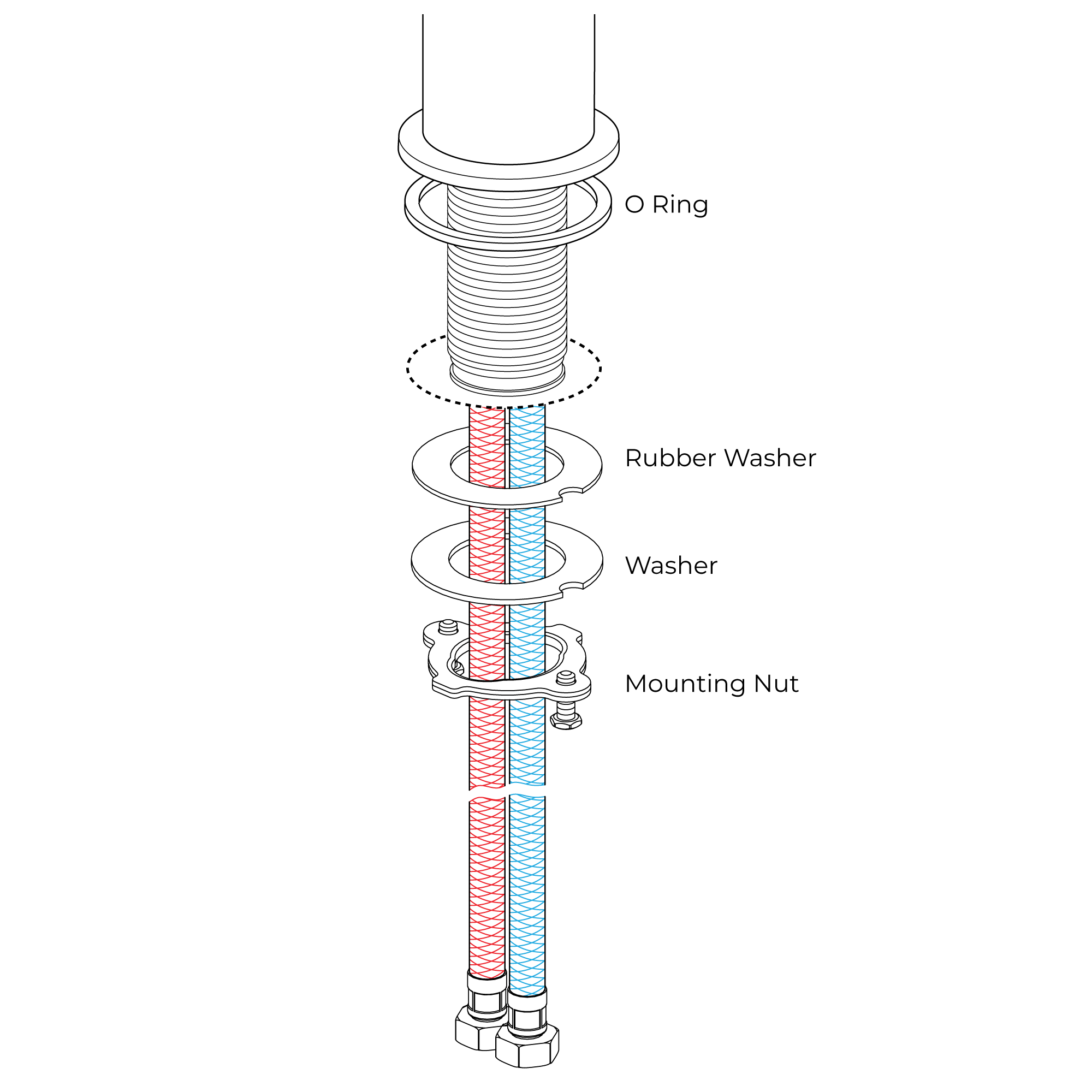

1. Remove the mounting nut, metal washer, and rubber washer from the threaded pipe.
2. Fit the O-ring into the groove of the faucet body. Screw waterlines into the corresponding screw-hole of the faucet body.
3. Insert waterlines and threaded pipe into the hole of the sink.

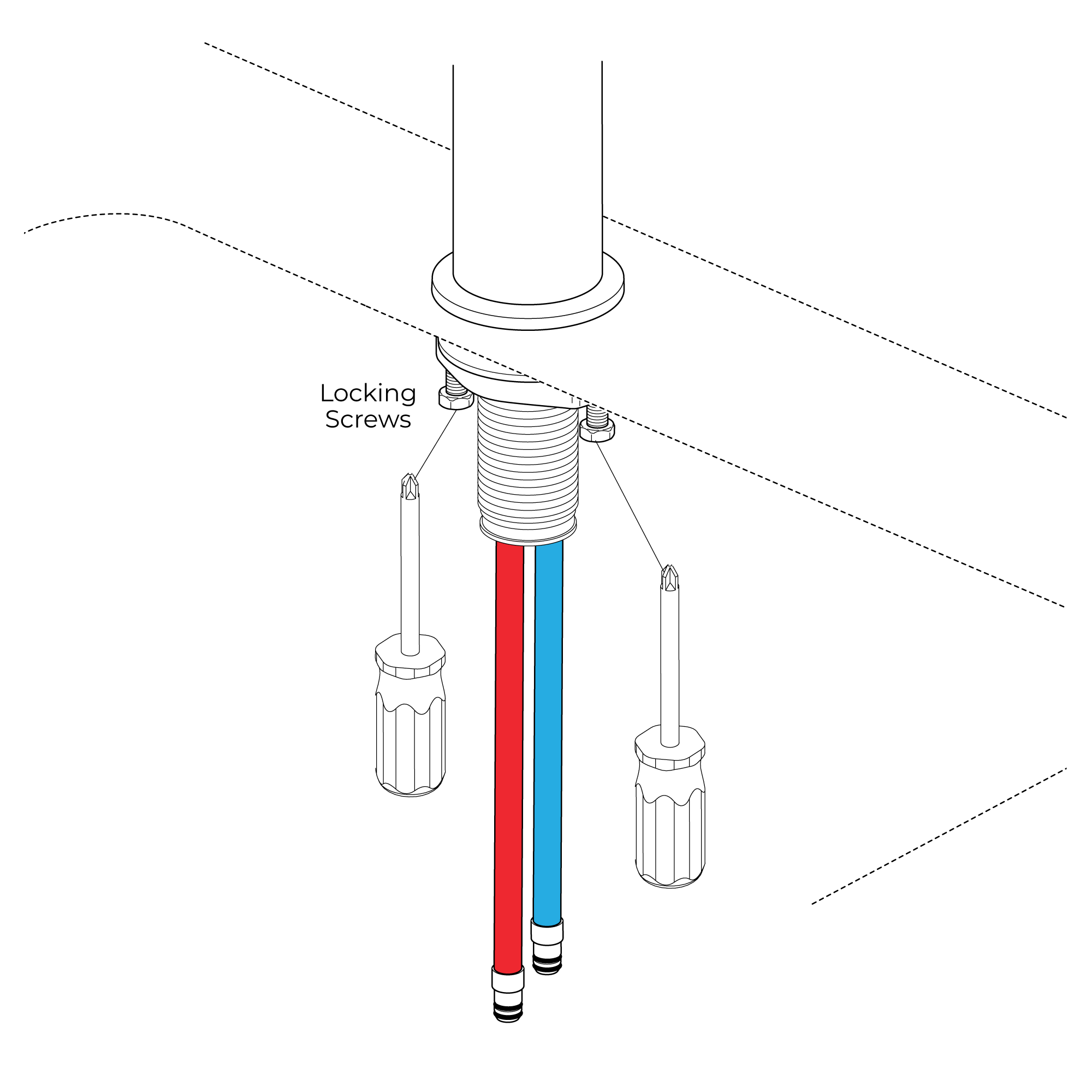

4. Install rubber washer, metal washer, and mounting nut back to the threaded pipe. Adjust the faucet body correctly and secure with mounting screws tightly.
5. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).
6. Turn faucet on for 1 minute to flush any debris.

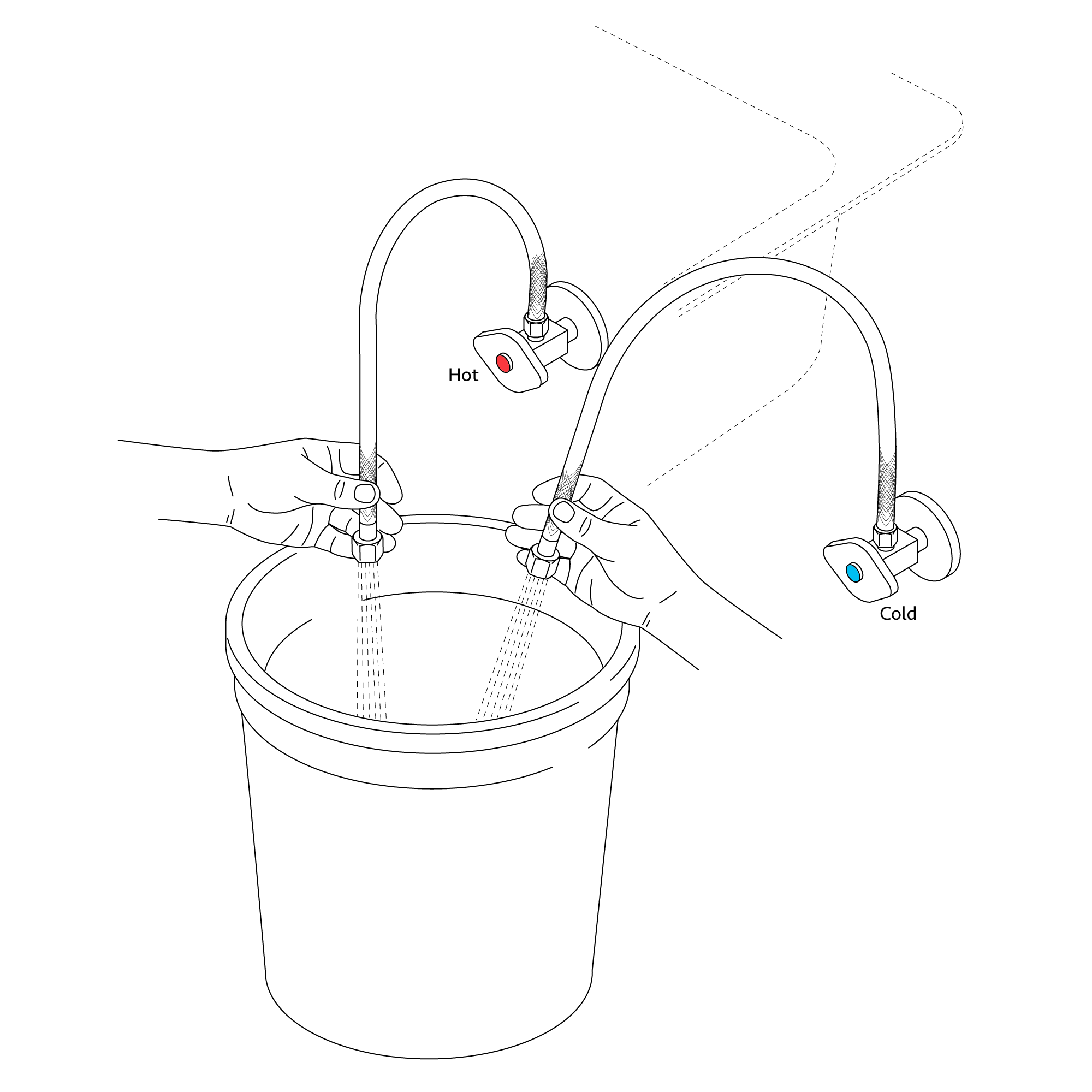

Important: Turn on hot and cold water supplies and flush water lines into a container for one minute.
This flushes away any debris that could cause damage to internal parts.











Fontana Gold Wall Mount Commercial Automatic Sensor Faucet


Minimize waste of water, by using this automatic wall mount gold faucet . The Sensor Faucet an electronically controlled faucets that eliminate the need to touch or turn handles. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Gold bathroom sensor faucets are anti-erosion, anti-abrasion and high strength.

Features:

  • Brand Name: FontanaShowers
  • Model Number: FS-03187
  • Type: Sink Faucet
  • Style: Contemporary
  • Number of Handles: Single Handle
  • Faucet Mount: Single Hole
  • Valve Core Material: Ceramic
  • Hot & Cold Water: Yes
  • Surface Treatment: Gold PVD
  • Installation Type: Deck Mounted
  • Surface Finish: PVD Gold
  • Alberni Gold PVD Solid Brass Mixer Bathroom Sink Faucet
