Installation Instructions for Bathroom Shower Panel
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Shower Panel Installation Instructions
Step 1:
shower
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height. Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket. Insert the wall anchors into the pre-drilled holes as shown in Figure B. Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets.
Insert the shower wand holder through the pre-drilled hole on the shower panel. Install the water supply hose for the shower wand onto the holder, as shown. Make sure all O-rings are inserted to prevent leakage. Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection. Finally, install the hand shower to the hose. Screw the cold and hot water hose from the shower panel to the supply lines in the wall. Carefully hang the shower panel on the secured mounting brackets.
• SUS 304 STAINLESS STEEL ---Shower Panel Brushed Nickel|Elegant and avant-garde curved design|Easy to clean.
• MULTI-STAGE SHOWER FUNCTION----Rainfall, Waterfall Shower Head, Horizontal Massage Spray, Hand Shower, Water Spout | Independent valve control for each shower function, The shower panel tower all functions can be turned on at the same time.
• 6 HIGH-POWERED MASSAGE JETS - Powerful performance even under low water pressure |360-degree rotation of water|Get a Spa shower experience at home.
• EASY INSTALLATION-- Pre-plumbed, Surface mounted and wall-mounted options|Including all standard installation accessories and hardware.
Massage+ Energy Saving = New Shower Life
Features
- We have a design patent which follows the trend and meet your all fantasy on the shower
- #304 stainless steel (Cr-Ni-Mo 18%-8%-0%), compared with # 210 stainless steel (Cr-Ni-Mo 17%-6%-0%), the quality is much better and no rust or oxidation
- Multifunctional---- hand shower, rainfall, massage jets, waterfall
- Each brass valve control for every function of the shower panel
- High quality brass material --more stable, no leaking
Brushed Nickle Stainless Steel Shower Panel Massage System
• Size: 55 x 7.9 x 7.9 inches
• Weight: 20.18 LB
• Water Consumption:2.5 GPM
• #304 Brushed nickel stainless steel
• 6 Round Body jets
• 1 Hand Shower
• 1 Brass Spout
• 1 Embed Plastic Rainshower +1 Waterfall
• S/S flexible hose(1.5m)
A New Shower Panel, A New Shower Way
• Elegant and avant-garde curved design----- Minimalist art beauty
• Dust prevention and high-temperature prevention design ------the stainless steel is only 1.1mm in thickness
• High-quality plating: passed precision salt spray testing standard
• Environmental PVC pipe--- anti-pollution,anti-explosion, high temperature and heat resistance

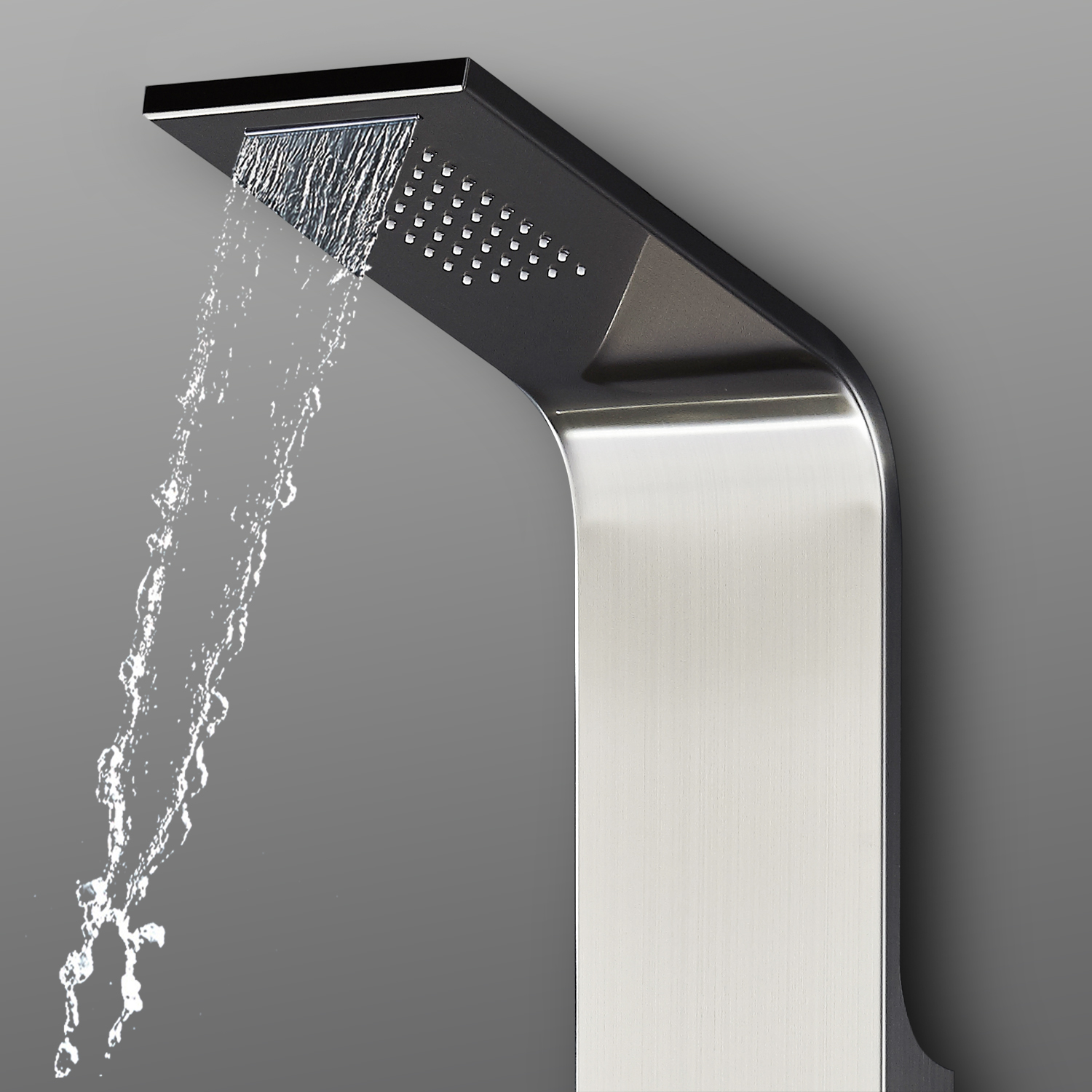

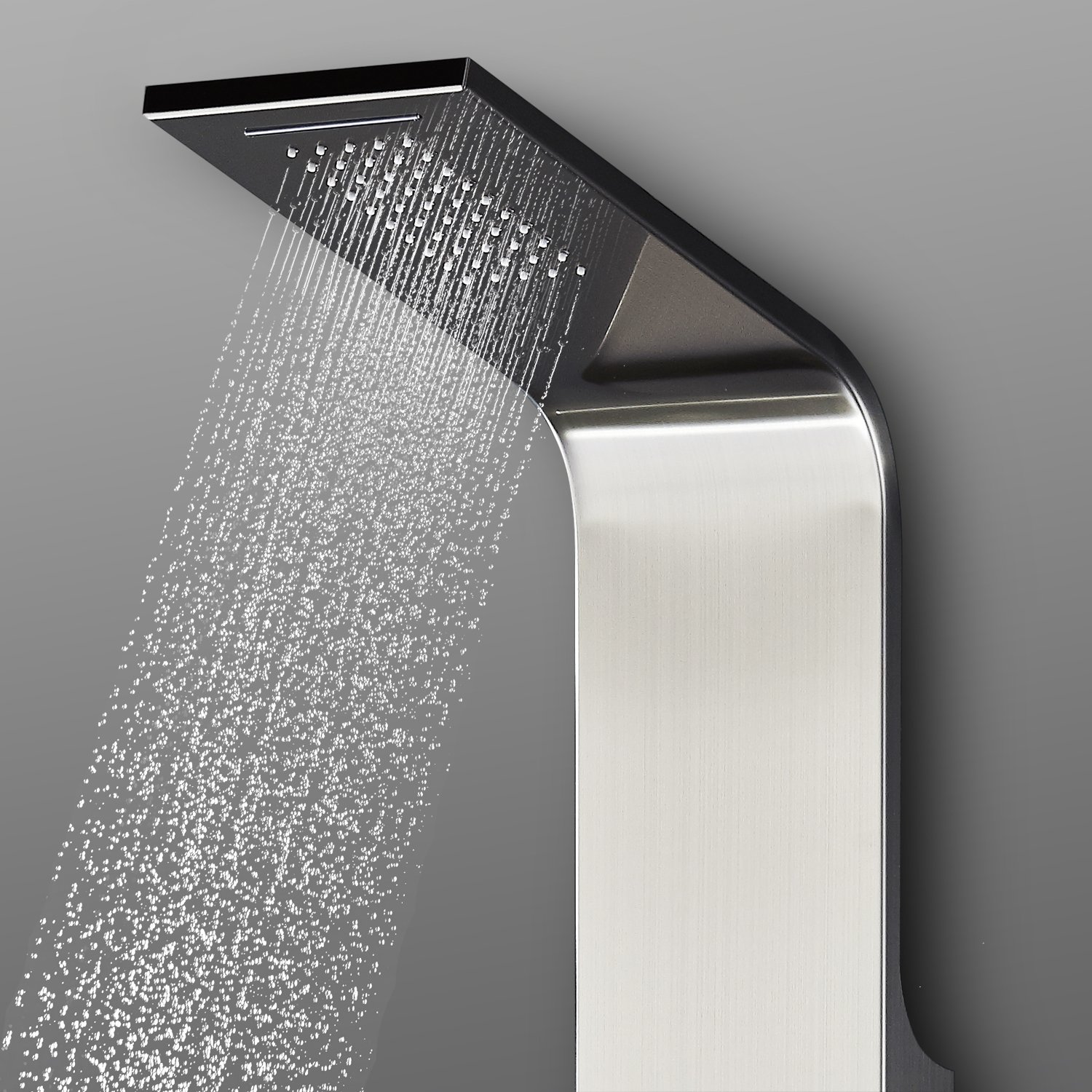

Shower Head
• 1 Inbuilt Rainfall and 1 Waterfall
• 50 total rainfall nozzles
• Massage enjoyment, like raining ---- clear and comfortable
• Dynamic waterfall flap shoulder skin softly, let you enjoy a comfortable massage

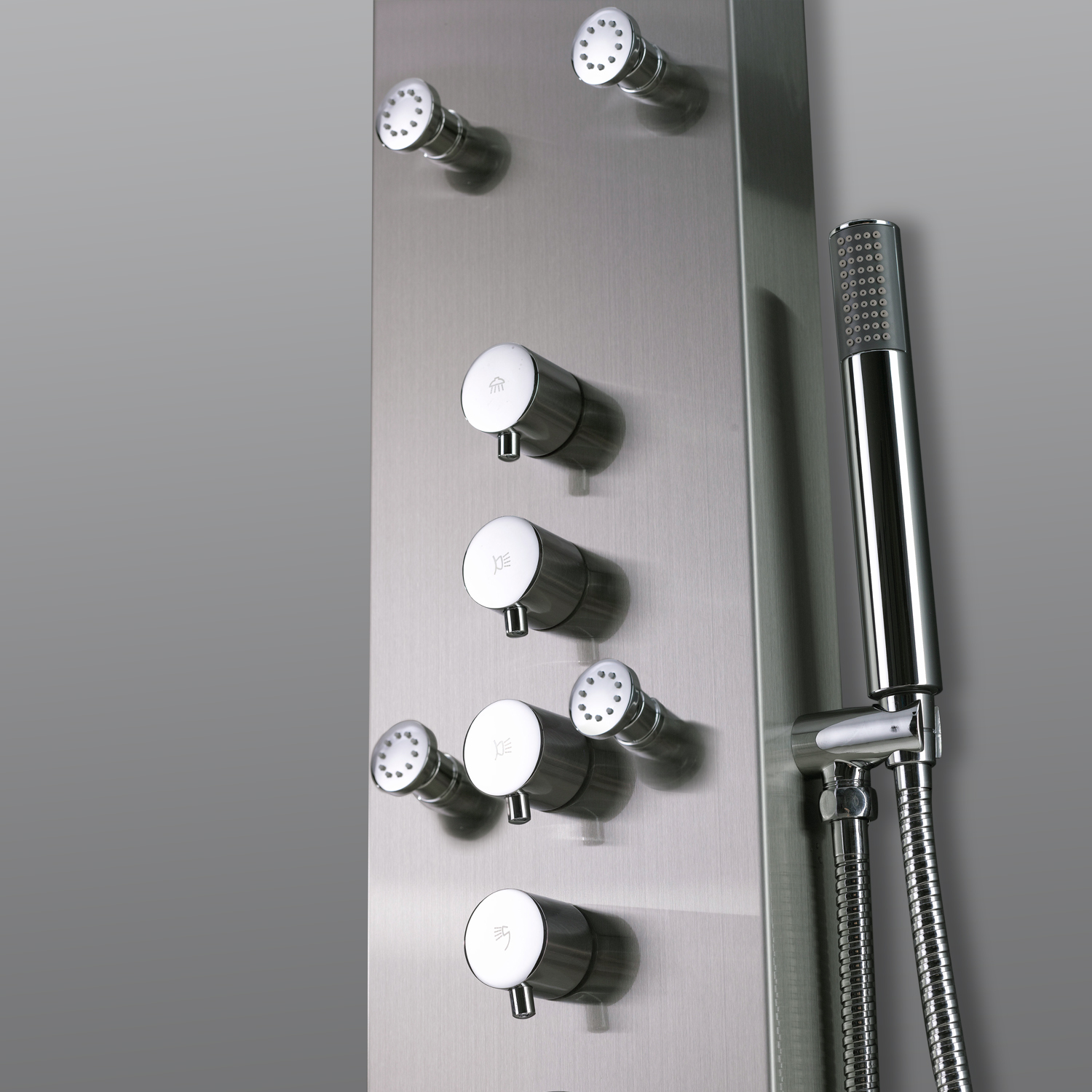

Massage Jets
• 6 powerful shower jets
• Saving 50% water, pressurize 300% more than 300 water branches
• Active side spray: 360-degree rotation of water, multi-directional shower

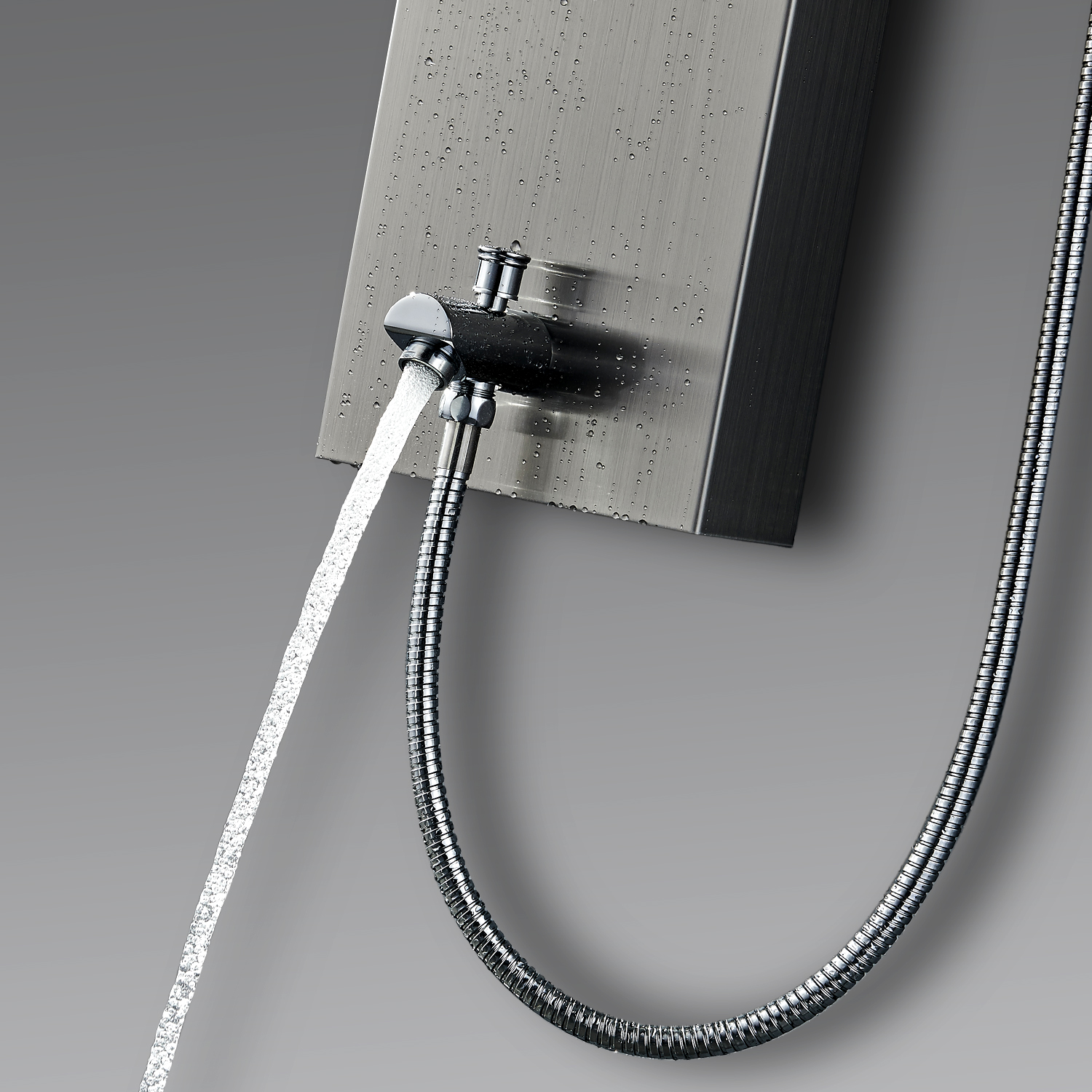

Hand Shower & Tub Spout
• Brass Shower holder
• Chrome Plated Finish, will not rust
• Tub spout---- no leaking, no splash but smooth water
• Unidirectional limiting technology---- more superior water-saving performance

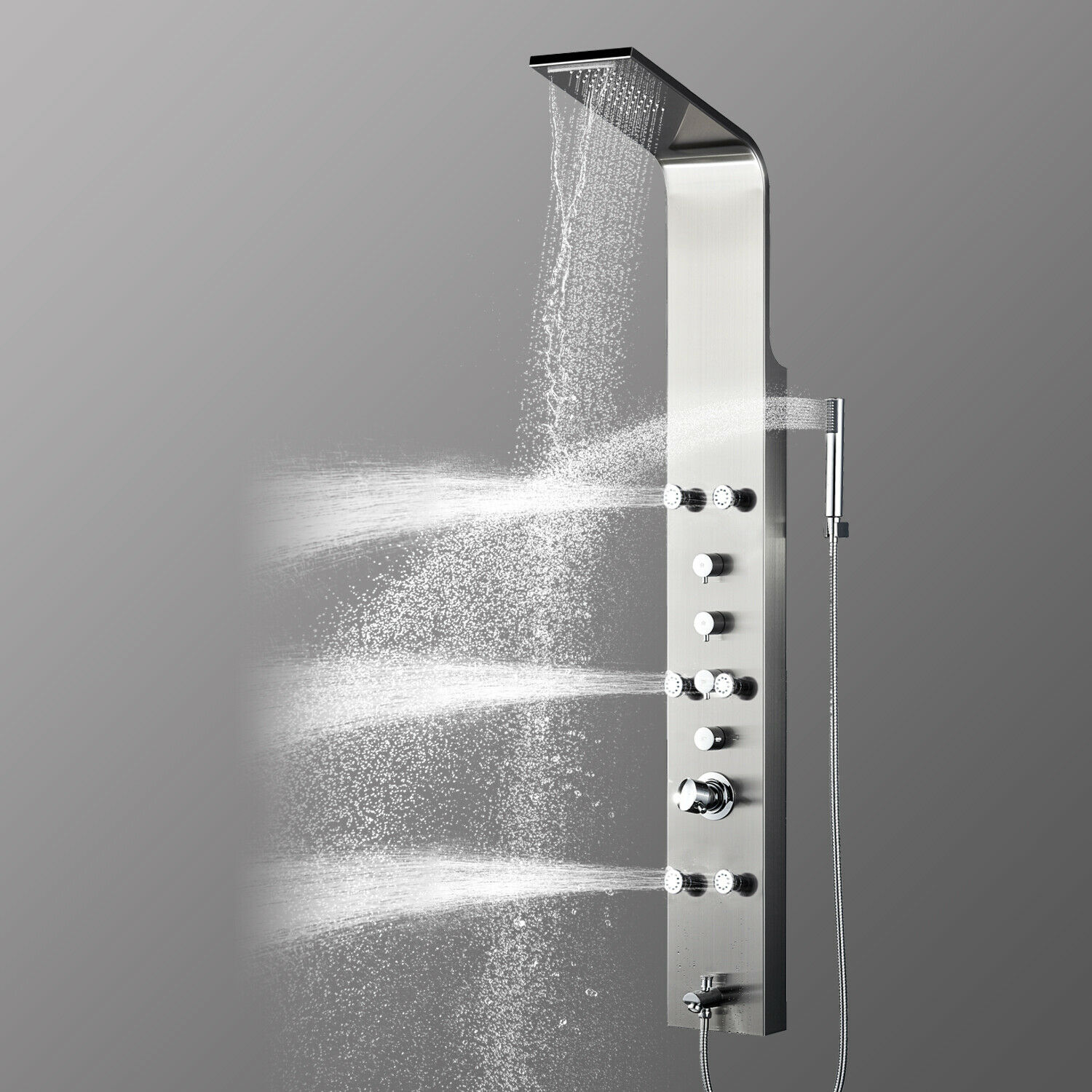

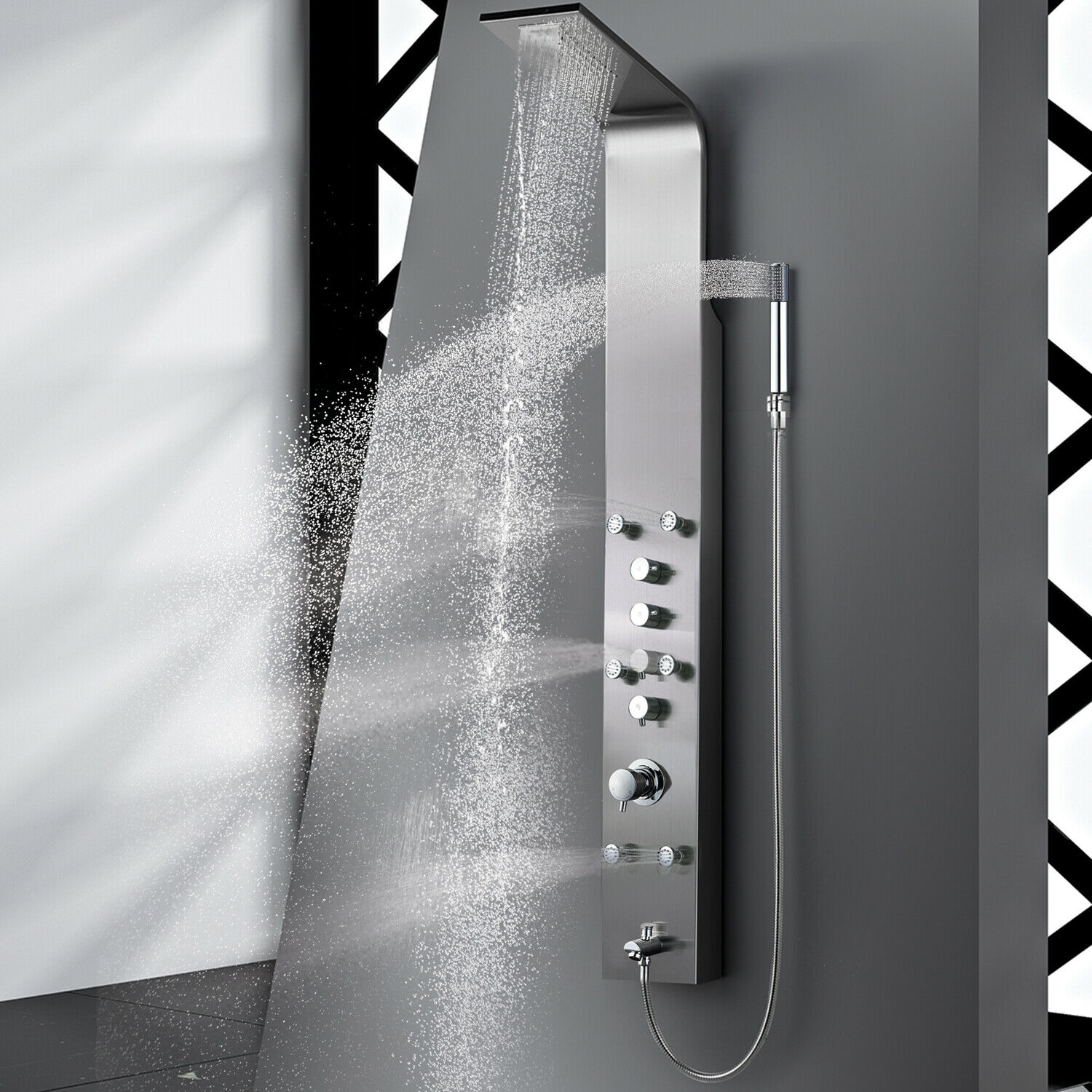

Fontana Shower Panel System Rainfall Waterfall Multi-Functional Sprayer Hand Shower W/ Tub Spout
Get a Spa shower experience at home. The Fontana Thermostatic Shower Massage Panel System offers a unique combination of a traditional shower and water massage. This panel is equipped with everything you can wish for in a shower system: adjustable massage jets, rainfall showerhead, elegant hand shower. All functions can be used independently or in any combination you wish. Since it is factory pre-plumbed and it has standard connections and is easy to install.
Features:
Brand Name: FontanaShowers
Model Number: shower-massage-panel-0801
Type: Shower Panel
Feature 1: Low Water Consumption
Feature 2: Shower Spray
Feature 3: Pulsating Massage
Hose Length: Shower Panel Brushed Nickel|Elegant and avant-garde curved design|Easy to clean.
Hose Material: Brass
Material: SUS 304 STAINLESS STEEL
MULTI-STAGE SHOWER FUNCTION : Rainfall,Waterfall Shower Head,Horizontal Massage Spray, Hand Shower,Water Spout | Independent valve control for each shower function, The shower panel tower all functions can be turned on at the same time.
Installation: Wall Mount
6 HIGH-POWERED MASSAGE JETS : Powerful performance even under low water pressure
360-degree rotation of water
Easy Installation :
Pre-plumbed,Surface mounted and wall-mounted options
Including all standard installation accessories and hardware.
