How to install Fontana Gold Rain Bathroom Shower Panel Column Massage Jets With Shelf Tub Spout Faucet | SHOWER-MASSAGE-PANEL-0830
|
Installation Instructions for Bathroom Shower Panel
|
|
Visit Product Page
|
|
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the products for any shipping damages. If you find damages, do not install.
- Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
|
shower
|
|
|
Shower Panel Installation Instructions
| Size: |
|
|
|
Function: Shower Panel
Material: Stainless Steel Finish: Gold polished Installation: Wall mounted 4 Water Way: Rain shower head, 6 massage jets, tub spout, hand held shower spray With storage shelf, convenient for shampoo, shower gel, soap storage Brand new in box ready to ship Easy to install Easy to clean,can be cleaned with mild soap to ensure the non-tarnish life shine
|
Step 1:
|
shower
|
Step 2:
|
|
|
|
|
|
|
|
|
Step 3:
|
|
Step 4:
|
|
|
|
|
|
|
|
Step 5:
|
|
Step 6:
|
|
|
|
|
|
|
IMPORTANT
Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height.
Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket.
Insert the wall anchors into the pre-drilled holes as shown in Figure B.
Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets.
Insert the shower wand holder through the pre-drilled hole on the shower panel.
Install the water supply hose for the shower wand onto the holder, as shown.
Make sure all O-rings are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection.
Finally, install the hand shower to the hose.
Screw the cold and hot water hose from the shower panel to the supply lines in the wall.
Carefully hang the shower panel on the secured mounting brackets.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

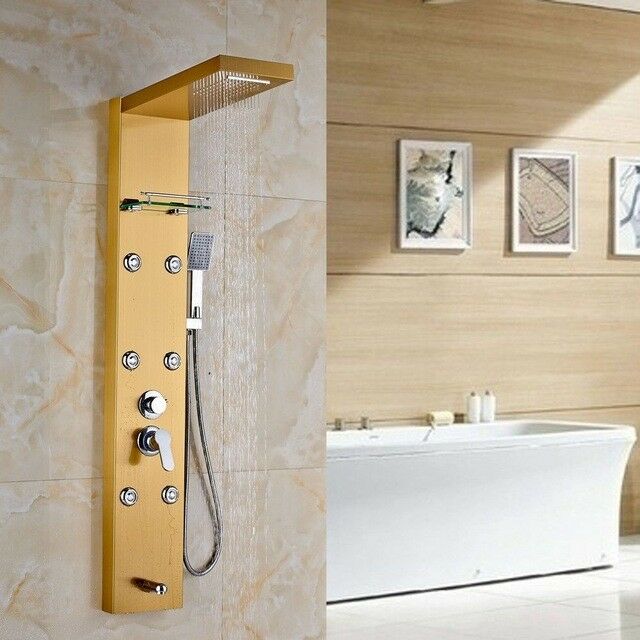

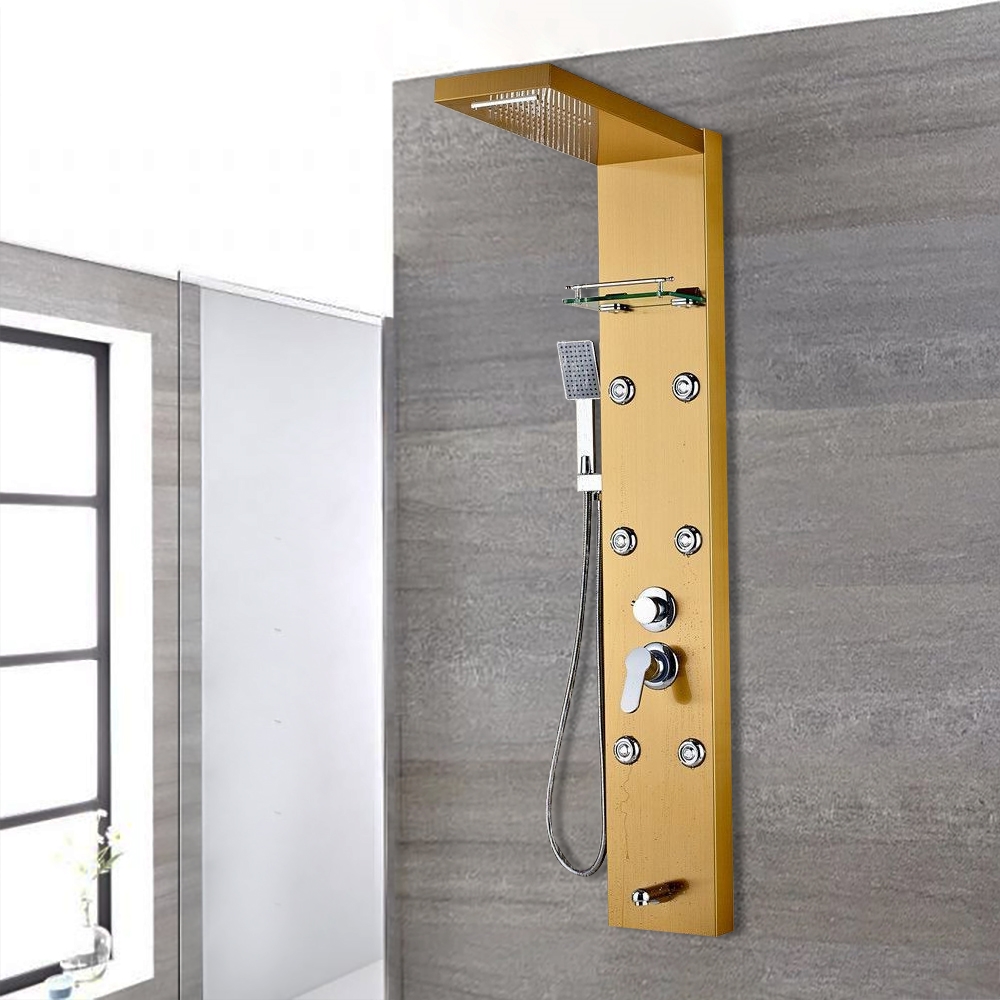

Fontana Gold Rain Bathroom Shower Panel Column Massage Jets With Shelf Tub Spout Faucet
Get a Spa shower experience at home. The Fontana Thermostatic Shower Massage Panel System offers a unique combination of a traditional shower and water massage. This panel is equipped with everything you can wish for in a shower system: adjustable massage jets, rainfall showerhead, elegant hand shower. All functions can be used independently or in any combination you wish. Since it is factory pre-plumbed and it has standard connections and is easy to install.
Features:
| Visit Product Page | - Brand Name: FontanaShowers
- Model Number: shower-massage-panel-0830
- Type: Shower Panel
- Feature 1: Low Water Consumption
- Feature 2: Shower Spray
- Feature 3: Pulsating Massage
- Hose Length: Shower Panel Brushed Nickel|Elegant and avant-garde curved design|Easy to clean.
- Hose Material: Brass
- Material: SUS 304 STAINLESS STEEL
- MULTI-STAGE SHOWER FUNCTION : Rainfall,Waterfall Shower Head,Horizontal Massage Spray, Hand Shower,Water Spout | Independent valve control for each shower function, The shower panel tower all functions can be turned on at the same time.
- Installation: Wall Mount
- 6 HIGH-POWERED MASSAGE JETS : Powerful performance even under low water pressure
- 360-degree rotation of water
- Easy Installation :
- Pre-plumbed,Surface mounted and wall-mounted options
- Including all standard installation accessories and hardware.
|
|
|
