How to install Fontana Light Grey Stainless Steel Outdoor Shower Column Panel | FS1311

Installation Instructions for Bathroom Shower Panel		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	shower

Shower Panel Installation Instructions

Step 1:	shower	Step 2:


Step 3:		Step 4:


Step 5:		Step 6:

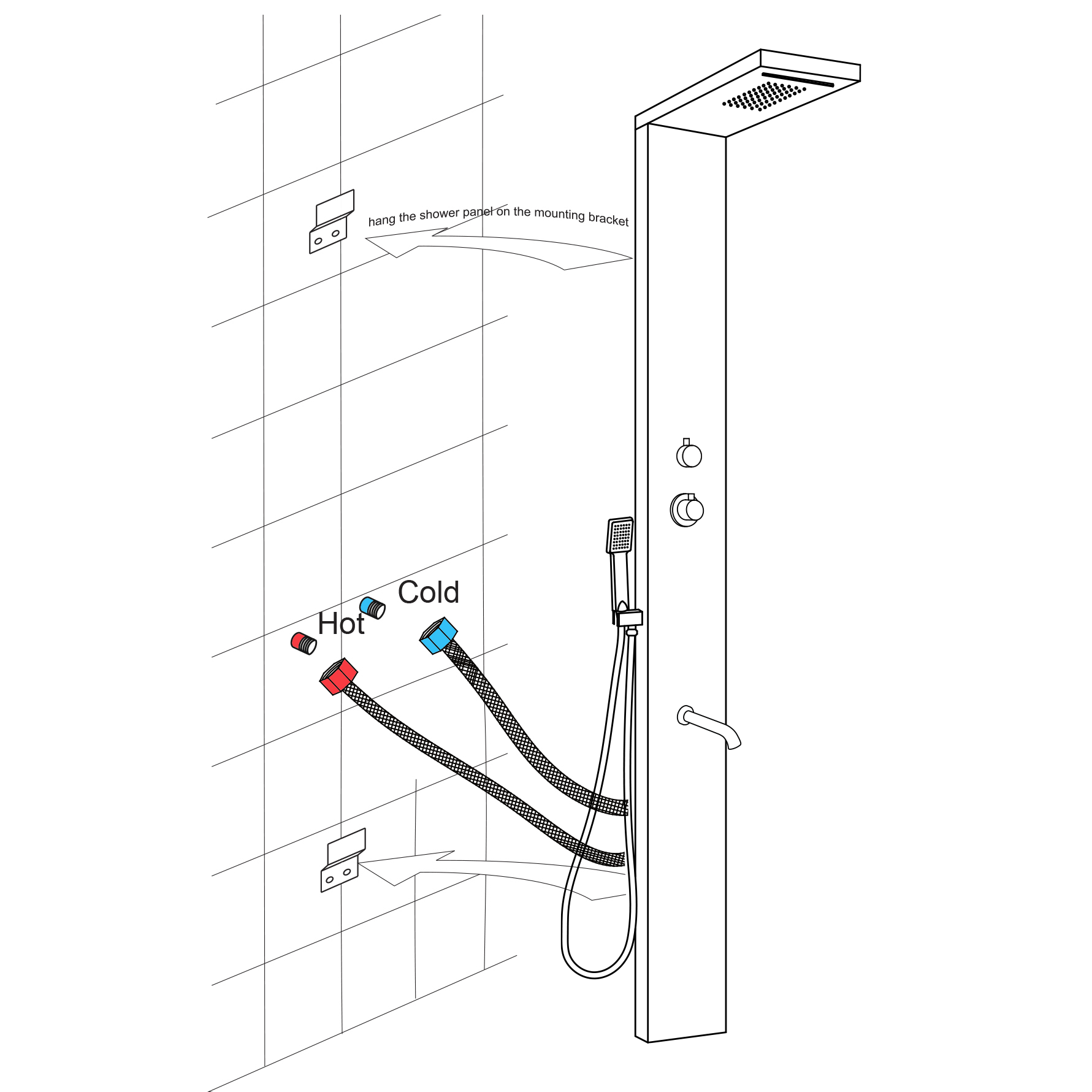

IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Drill the two holes for the top bracket 1” apart at the desired height. Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket. Insert the wall anchors into the pre-drilled holes as shown in Figure B. Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets. Insert the shower wand holder through the pre-drilled hole on the shower panel. Install the water supply hose for the shower wand onto the holder, as shown. Make sure all O-rings are inserted to prevent leakage. Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection. Finally, install the hand shower to the hose. Screw the cold and hot water hose from the shower panel to the supply lines in the wall. Carefully hang the shower panel on the secured mounting brackets.
Features: Fontana Light Grey Stainless Steel Outdoor Shower Column Panel - Made form Top Quality Stainless Steel, which means this Shower WILL NOT RUST! So you can easily enjoy it either Outside or Inside your home. cUPC REGISTERED- Purchase with Confidence as this product has been Tested & Registered with the UPC Code of compliance, which is the Uniform Plumbing Code (UPC) and Canadian Uniform Plumbing Code (cUPC) which are designated as the American and Canadian national standards, respectively. . These codes are designed to provide consumers with safe and sanitary plumbing systems and a piece of mind. COMPLETE SHOWER SYSTEM WITH INTERNAL HOT & COLD PLUMBING! -This shower comes with Full Internal Pre-Installed Plumbing, no need for extra parts! All that needs to be done is to connect this unit to Hot & Cold water supply. CAN BE INSTALLED FREE STANDING OR WALL MOUNTED-Enjoy this shower anywhere you like as it can be installed Free Standing, which means you can install it next to the swimming pool or anywhere in your backyard. And since it can be Wall Mounted as well, you can easily install it on your fence, on the wall or inside the bathroom.	idcdjjscbiXBCkJXBCHXHJZBCkHJXBC kxBHCKHXBCSHBCX

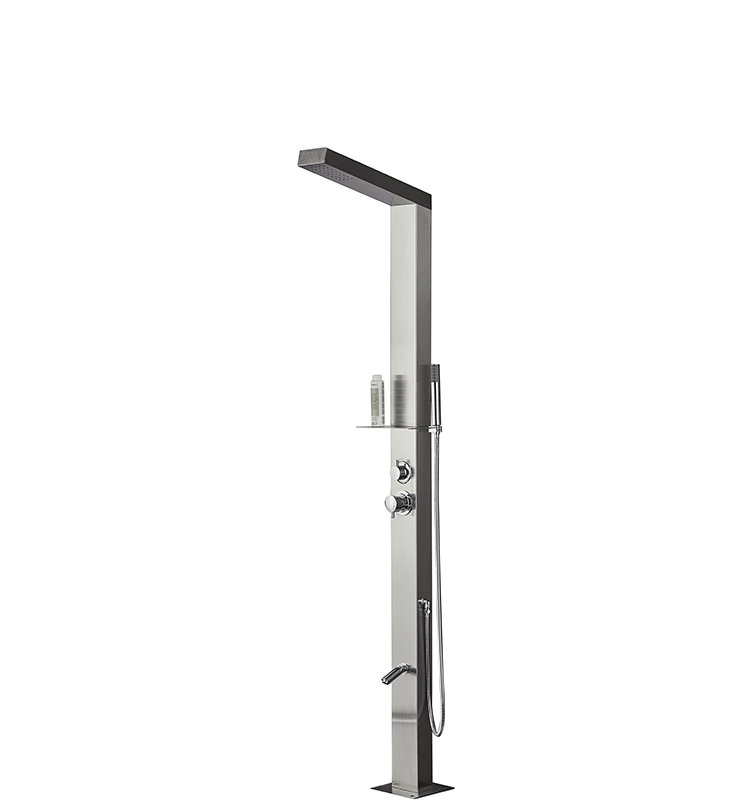

Fontana Light Grey Stainless Steel Outdoor Shower Column Panel

When it comes to new shower upgrades, FontanaShowers is the best company to buy from. This has an elegant design and elevates the appeal of your outdoor pool or patio. Made from the highest quality and for great tastes.
