How to install Fontana Shower Room Mixing Valve, Shower Room 3/4/5 Way Water Outlet Thermostated Copper Head, Shower Room Thermostatic Faucet | FS1861MV

Easy step by step Installation Instructions for Thermostatic Shower Mixer 3 - way

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.

Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

Shower
mixer

Easy step by step Installation Instructions for Thermostatic Shower Mixer 5 - way
Easy step by step Installation Instructions for Thermostatic Shower Mixer 4 - way

Shower Mixer Installation Instruction

shower mixer shower mixer

Step 1: mixer Step 2:

shower mixer shower mixer

Step 3: Step 4:

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.

Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

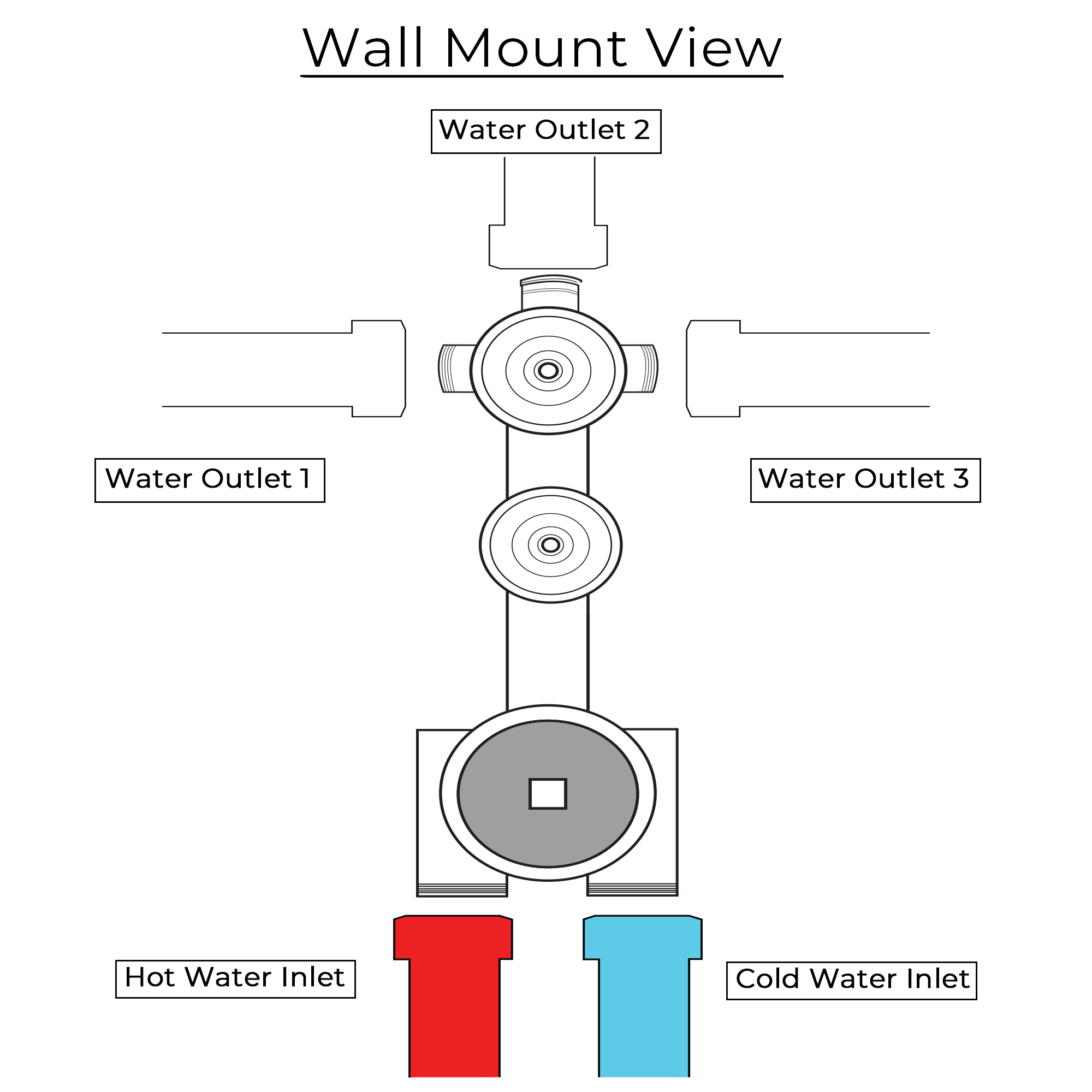

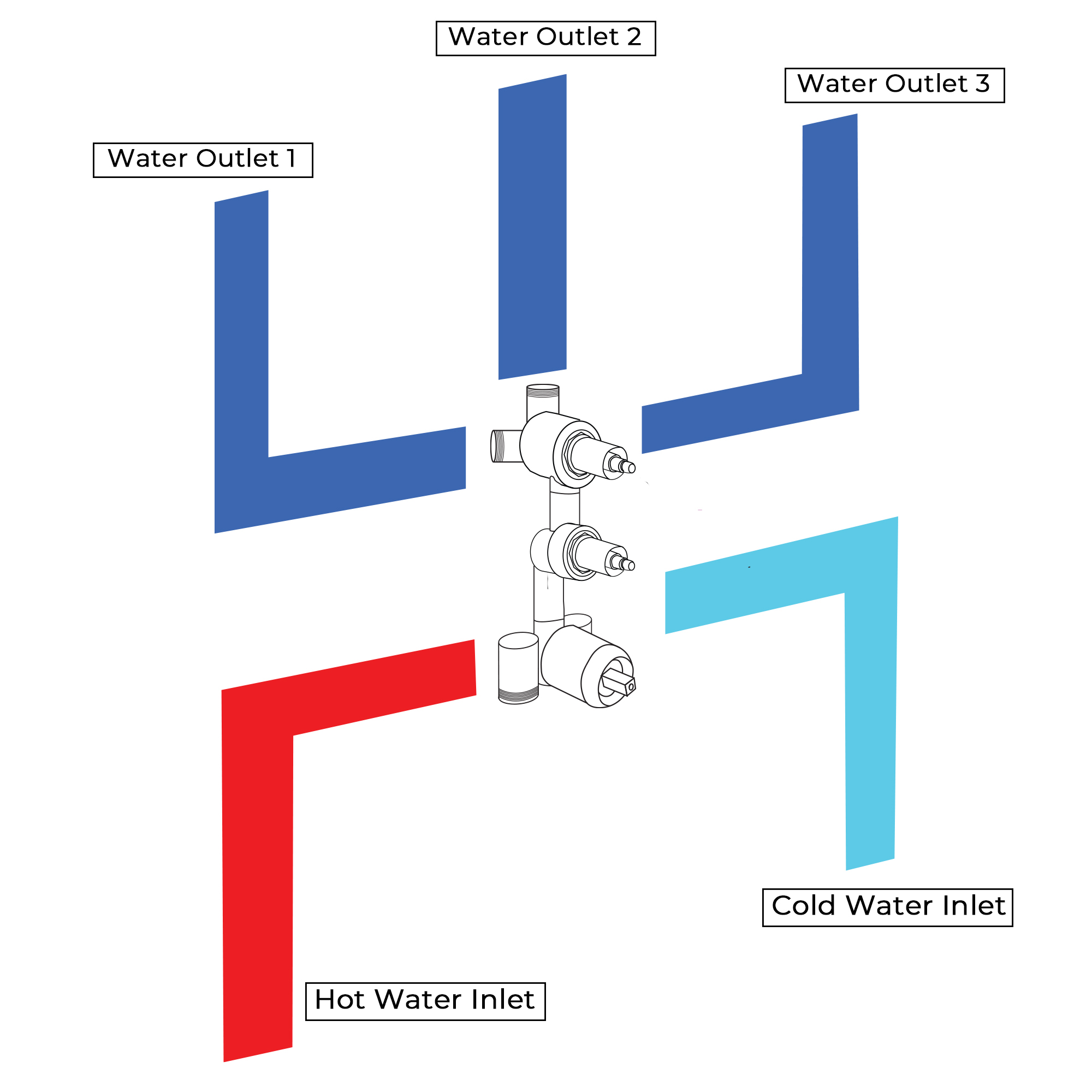

Shower Mixer Wall Mount View Connection Shower Mixer Connection Overview

Shower
Mix

Fontana Shower Room Mixing Valve, Shower Room 3/4/5 Way Water Outlet Thermostated Copper Head, Shower Room Thermostatic Faucet

This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for. Give your bathroom an elegant glance with our Shower room mixing valve, shower room 3/4/5 way water outlet thermostated copper head, shower room thermostatic faucet. This is one of the most trendiest finishes across decor styles in the bathroom. It comes super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time.

Features:

Brand Name: FontanaShowers

Model Number: FS1861MV

Type: Fixed Rotatable Type

Control Type: Dual Holder Dual Control

Shower Shape: Round

Style: Double

Feature: Water Saving

Surface Finish: Chrome

Is Customized: Yes

Accessories: Water-saving Controller

Material: Brass

Installation Type: Wall Mount
