How to install Solo Gold Tone Touchless Motion Activated Sink Faucet | FS-509GP




Easy step by steps Installation Instructions for Commercial Automatic Sensor Faucet

  • Read These Installation Instructions Carefully Before You Begin Installation Observe All Local Building and Safety Codes.
  • Unwrap and inspect for shipping damages. If damaged, do not install.
  • Please note that all products have to be installed by a professional and certified plumber; otherwise, the warranty might be void.

Sensor Faucet Installations Instructions

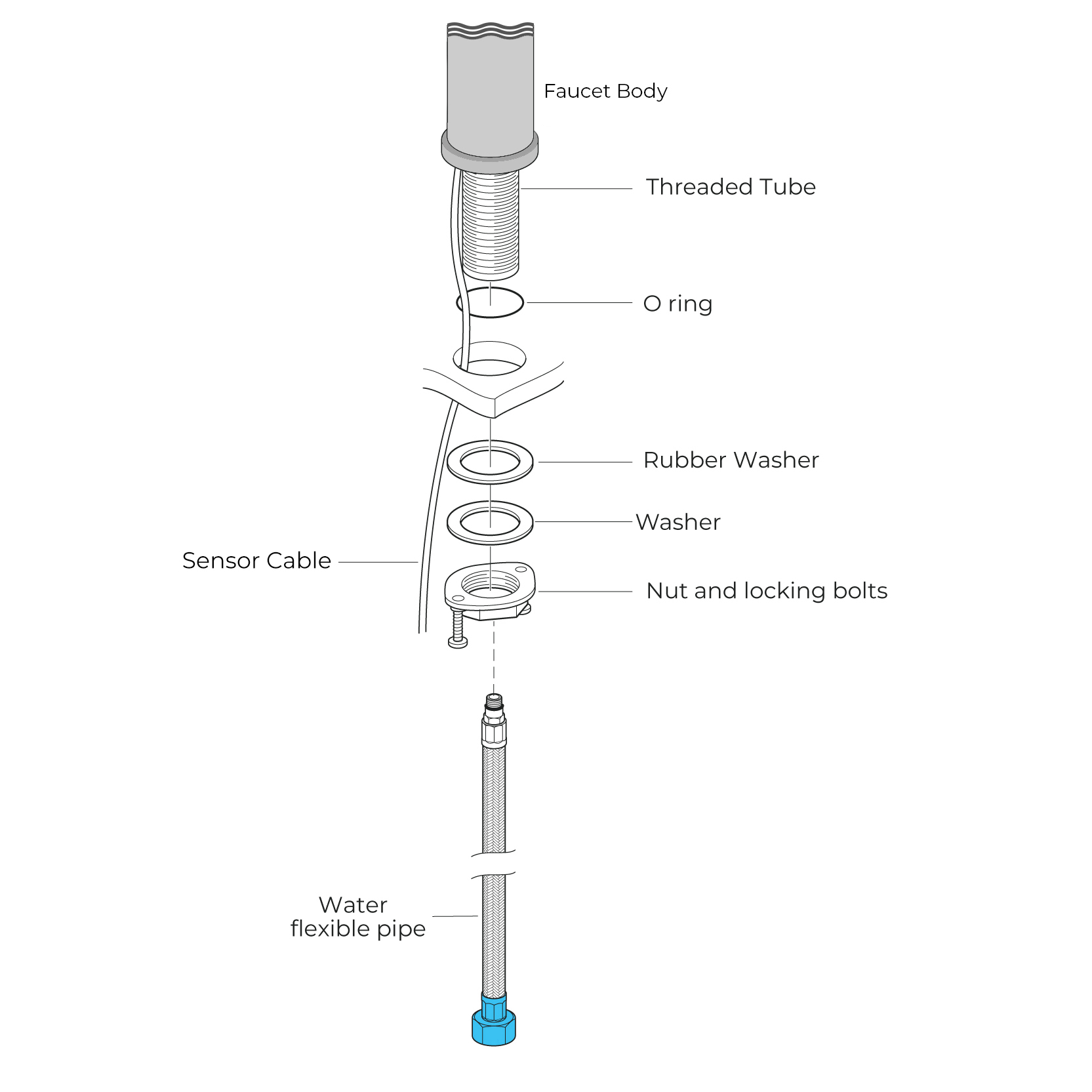

Deck Mount Installation


Battery (DC 6V) Only Control Box
Step 1: Step 2: (Hot & Cold Connection)

sensor



Battery (DC 6V) & AC 220V Control Box
Step 3: Step 4:


Step 5: Flush Debris from waterpipes Step 6: Hot & Cold Regulator


Step 7: Step 8: (Correct way for Hose)



1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body.

2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws.

3. Install the control box to the wall and fix it with screws.

4. Add the rubber washer and screw supply elbow to the control box.

5. Add rubber washers and connect water lines to the hot and cold inlets of the supply elbow. Then connect the hose to the water outlet and insert data cable into the control box and plugin.

6. Make Connections to water supplies. Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts.

7. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).

8. Turn the faucet on for 1 minute to flush any debris.


Flexible Connecting Hose

Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist.
See above for recommended ways to fit the flexible connecting hose.

Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.



Control Box Installation Instructions

Step 1: Step 2:
control box
Step 3: Step 4:
5" size
Step 5: Step 6:
Inserting Batteries
Your infrared spout is supplied with a back up battery pack (batteries not included). In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function.


Before fitting the power supply box into position on the wall/floor, batteries (not included) will need to be fitted.

1. Remove Power Supply Box Cover
Remove all four screws in each corner of the power supply box and remove the cover.

2. Remove Battery Box
Remove the battery case from the power supply box and remove the screw in the center of the case.

3. Insert Batteries
Insert 4 x AA batteries (not included) into the battery box ensuring they are inserted the correct way.
Note: Only use 1.5V AA (LR6) Alkaline batteries (preferably => 2000mAh for good battery life).

4. Replace Battery Box
Replace the battery case cover. Replace and tighten the screw. Insert the battery case back into the power supply box.

5. Replace Power Supply Cover
Replace the power supply cover and tighten all 4 screws ensuring they are all fully tightened.


Installation - Electrical Connections


1. Position Power Supply Box
Position the power supply box onto the wall surface below the sink/work surface where it is easily accessible.

Note: Ensure that the power supply box is fitted the correct way up (see opposite) and that the flexible hose will reach from the underside of the spout to the power supply box.

Using suitable fixings for the wall type secure the power supply box to the wall.

2. Connect Power Supply Cable
Before starting any electrical work ensure the power supply is isolated. Wire the electrical power cable into a switched fused spur off the ring main. The blue wire should be wired to the neutral connection and the brown wire should be connected to the live connection.

Important: The power supply box must be permanently connected to the fixed wiring of the mains supply using the factory supplied power cable.

3. Plug In Power Cable
Plug the power cable into the power supply box.

4. Connect The Sensor Cable
Plug the sensor cable from the spout into the power supply box to activate the infrared senor.


Installation - Water Connections

Connecting Water Supply
A blended water supply is required to the inlet of the power supply box. Before connecting the water supply to the power supply box flush through the pipework to ensure removal of debris. Once flushed through turn off the mains water supply and close any isolating valves.

Inlet Connection
The inlet connection on the power supply box is a 1/2” BSP male threaded connection. Connect a 1/2” BSP female connector to the inlet connection ensuring a suitable sealing washer is used to create a water tight connection.

Outlet Connection
The outlet connection is a standard 1/2” BSP male threaded connection. Connect the flexi hose (supplied) to the outlet connection, ensuring it is tightened fully.


Features:

  • Touch free operation
  • Water temperature adjustable
  • Hygienic:without touching, bacteria mutual infections can be avoided
  • Sensing range adjustable: 4.72"-7.08"12 - 18cm adjustable distance according to requirements
  • AC and DC dual choice: can be chosen by exchanging battery box and power box
  • Save electricity: The faucet can run for two years with four AA alkaline batteries
  • Anti-disturbance ability: Anti high-frequency signal and glare disturbance
  • Brass body with the temperature handle besides.It is a mixer, The cold water in the left turning,the hot water in right turning.

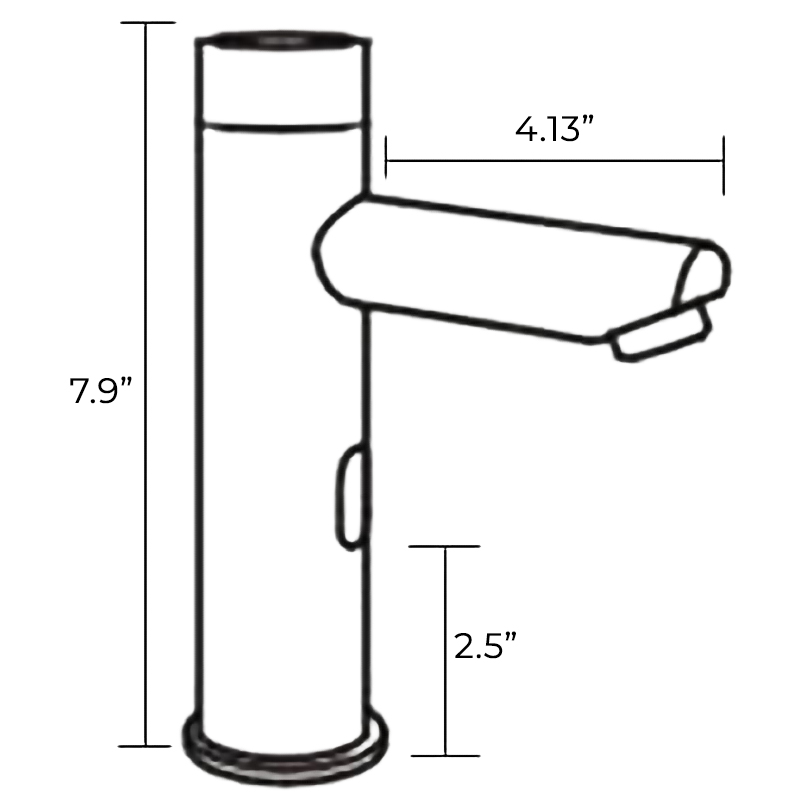

  • Dimension in cm: 20 (Height) *5. 5 (Width) *12 (Length)
  • Engineered for a lifetime use
  • Single-hole configuration

Voltage DC 6V (4AA alkaline batteries)
Power consumption ≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
Sensor zone 30cm (the data based on 30cm*30cm standard whiteboard
Run time When hands are within the sensor zone water will automatically flow.
When the hand is removed from the sensor zone water turns off instantly.
Hot and cold water temperature control See options
Inlet and outlet pipe dia. G (1/2")
Water pressure 0.05-0.8 Mpa
Material and surface Brass valve with Oil Rubbed Bronze







Functions:
1. Water saving: water flows out when hands get close and when your hand moves away, water stops immediately.
2. Hygienic: one open and close to hands-free from any contact, which can efficiently prevent mutual infection of bacteria
3. Intelligent: with your computer to control its action, the faucet can auto-adjust its best detection zone as per color and the shape of the sink
4. Low power consumption: for DC agitators, 4AA alkaline batteries can be used for 2 years.
5. convenient to maintain: there is an internal filter to prevent the entry of the solenoid valve of miscellaneous and the filter is easy to clean.





Solo Gold Tone Touchless Motion Activated Sink Faucet


Our Solo Gold Tone Polished Sensor faucet is a brilliant solution for a specialty designed restroom being a simple 90-degree shape and charming gold tone color. Its built-in feature of 30 seconds shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.
