How to install Fontana Bathroom Black Shower Faucet Valve Brass Wall Mounted Concealed Mixer | FS-1178

Easy step by step Installation Instructions for 2 Way Wall-Mounted Shower Faucet Mixer Valve

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

Shower
mixer

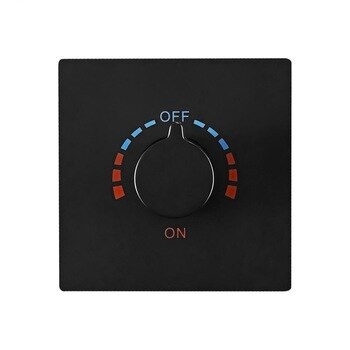

Fontana Bathroom Black Shower Faucet Valve Brass Wall Mounted Concealed Mixer

Shower Mixer Installation Instruction

Shower Mixer		Shower Mixer Inlet and Outlet Connections
	Shower Mixer
Shower Mixer

shower mixer		shower mixer
Step 1:	mixer	Step 2:


shower mixer		shower mixer
Step 3:		Step 4:

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

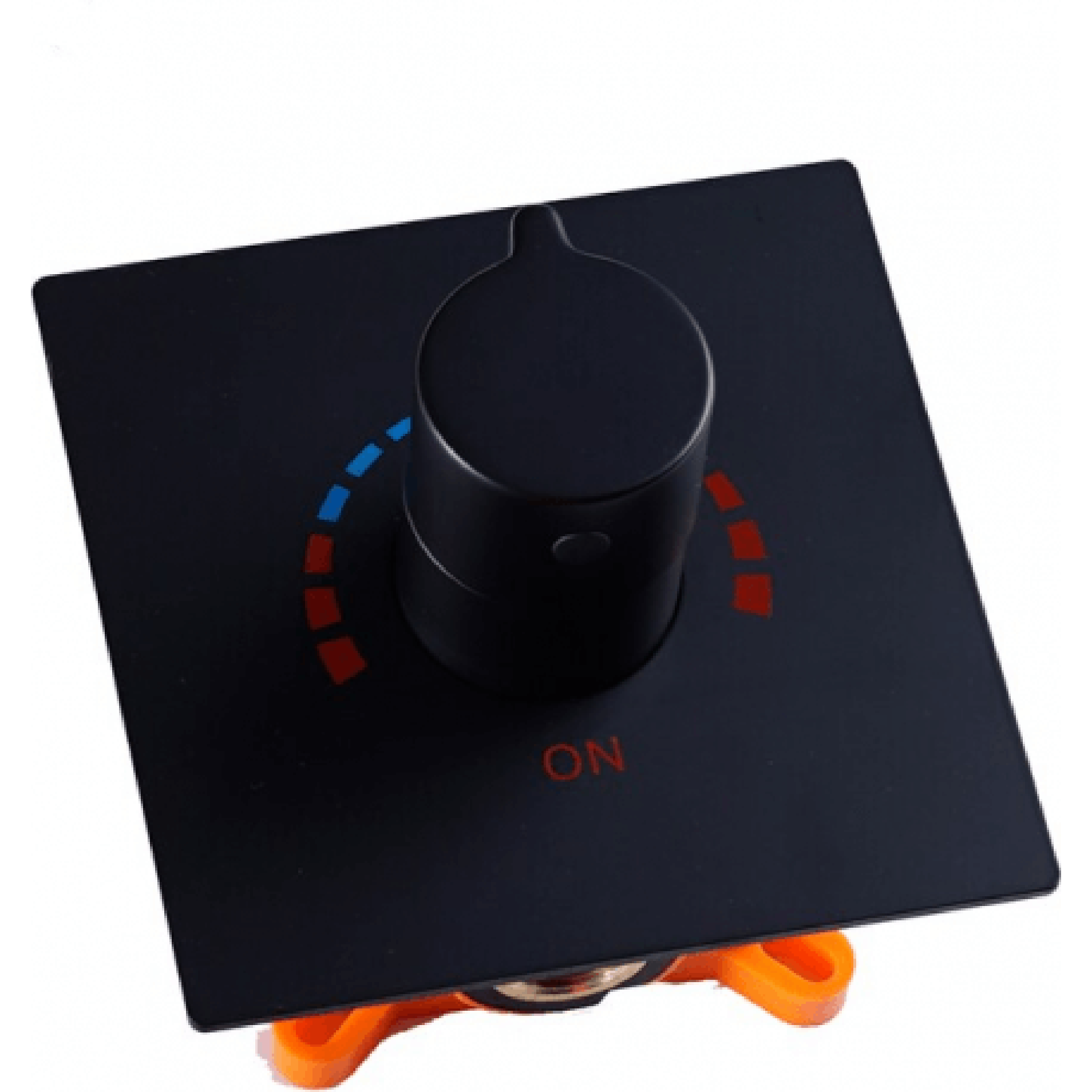

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.

Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

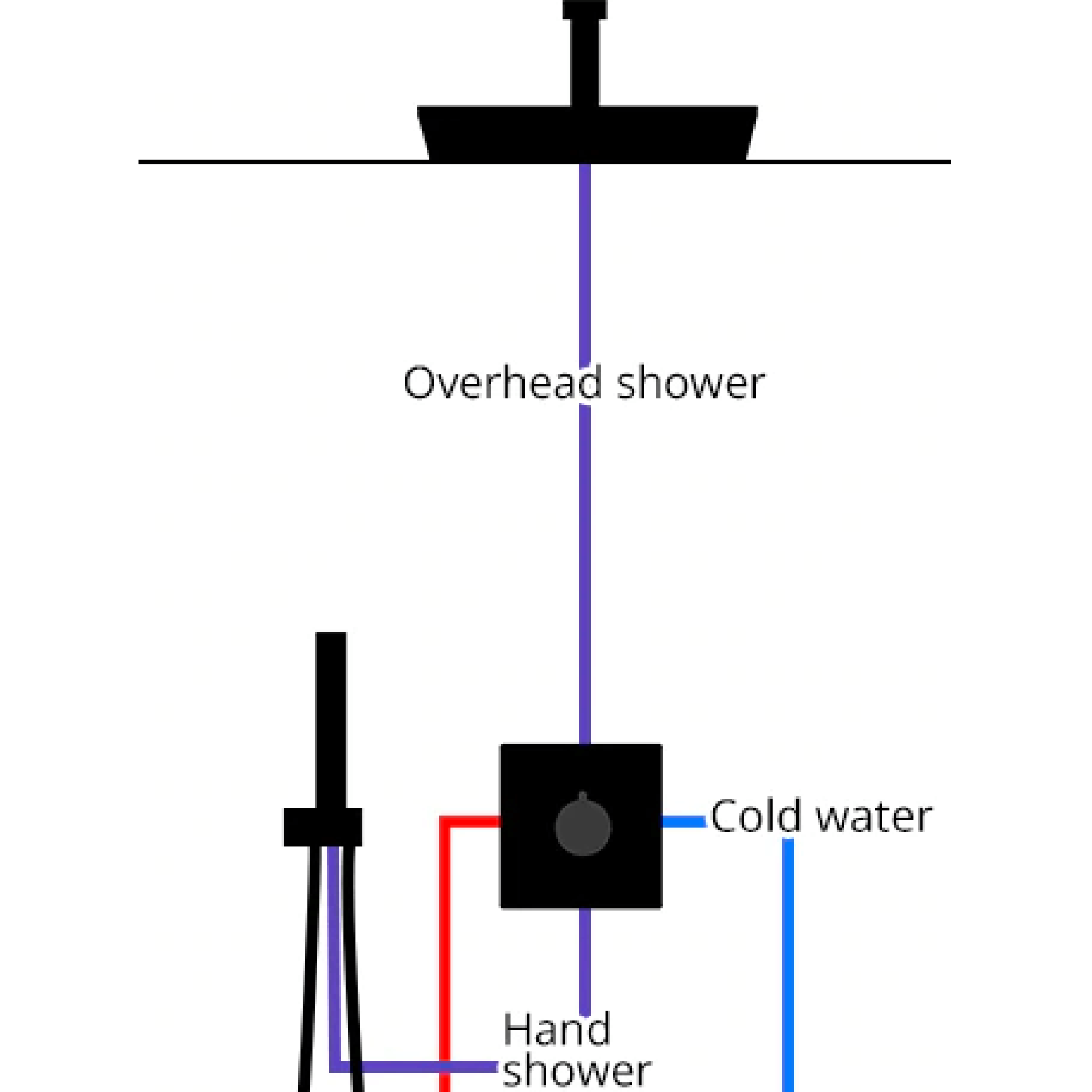

Shower Mixer Wall Mount View Connection		Shower Mixer Connection Overview
	Shower Mix

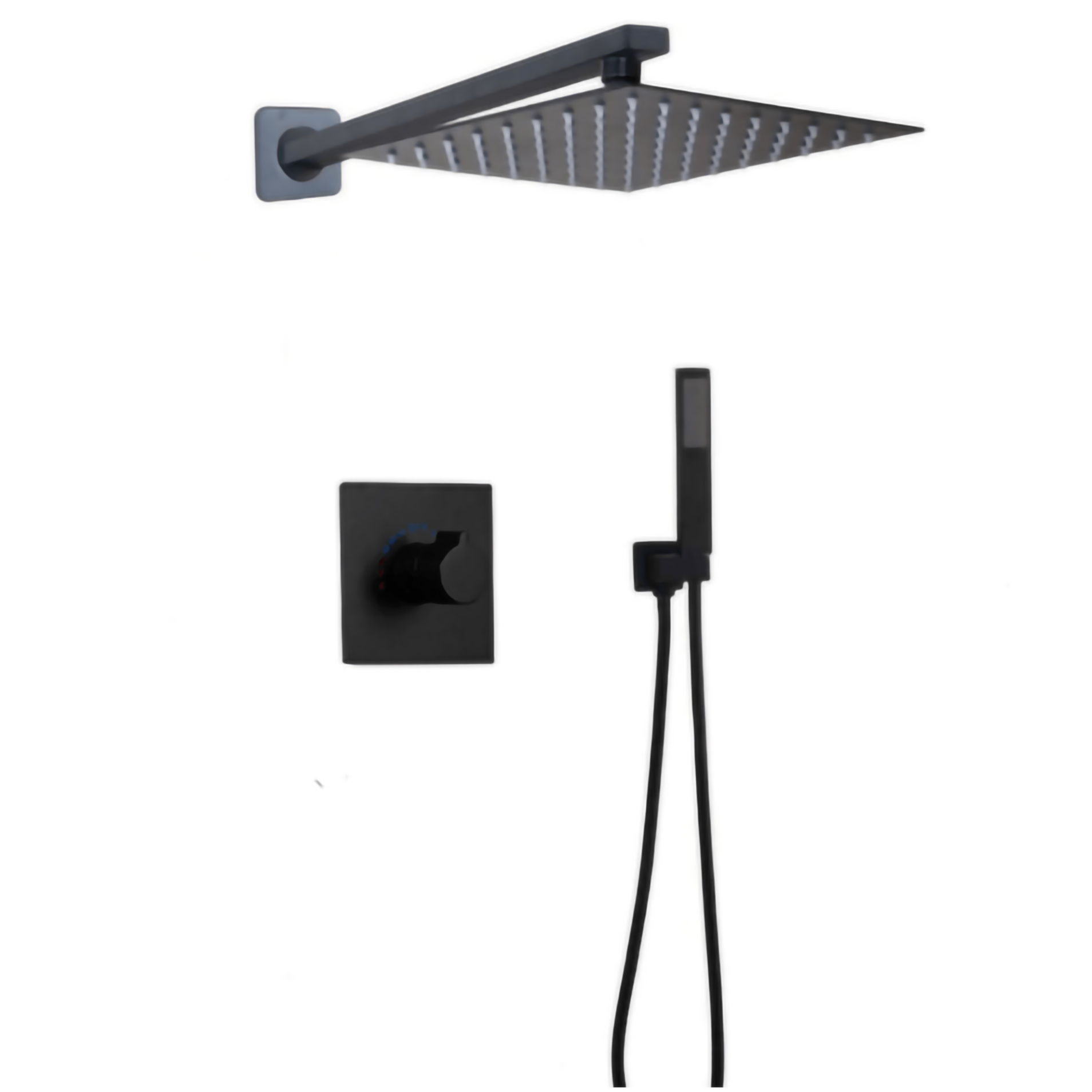

Black Shower Faucet Valve Brass Wall Mounted Concealed Mixer

Fontana Multifunction Shower Control Switch Valve Bathroom Shower

Give your bathroom an elegant glance with sink faucets and fixtures. Constructed of metal ensuring durability and dependability.

Features:

Brand Name: FontanaShowers

Model Number: FS-1177

Type: Shower Mixer Valve

Valve Core Material: Ceramic

Number of Handles: Single Handle

Size: 131-200mm

Feature: Cold and Hot

Surface Treatment: Polished

Surface Finishing: Brass

Cold/Hot Water Control Type: Single Holder Dual Control

Style: Contemporary Type: Fixed Rotatable Type

Shower Switch: Mixing valve

Shower Switch Valve: Shower Switch

Mixing Valve Material: Brass

Solid Brass Mixing Valve Switch: Concealed Shower Valve

Maintenance method of faucet shower:

Method 1: In order to keep the surface of the shower clean, use a soft cloth, rub the surface with the flour, and rinse with water to keep the surface smooth;

Method 2: Brush the surface of the shower with a toothbrush and a toothpaste. Brush it for 3 minutes, rinse with water, and dry.

BRASS VALVE: Faucet body is made from high quality brass, ensuring quality and longevity.

EASY OPERATION: Dual handle design for effortless flow and tempreture control.

Pressure balancing and ceramic temperature regulating cartridge, equipped with adjustable temperature integral limit stop and integral stops

Connection Size: G1/2"

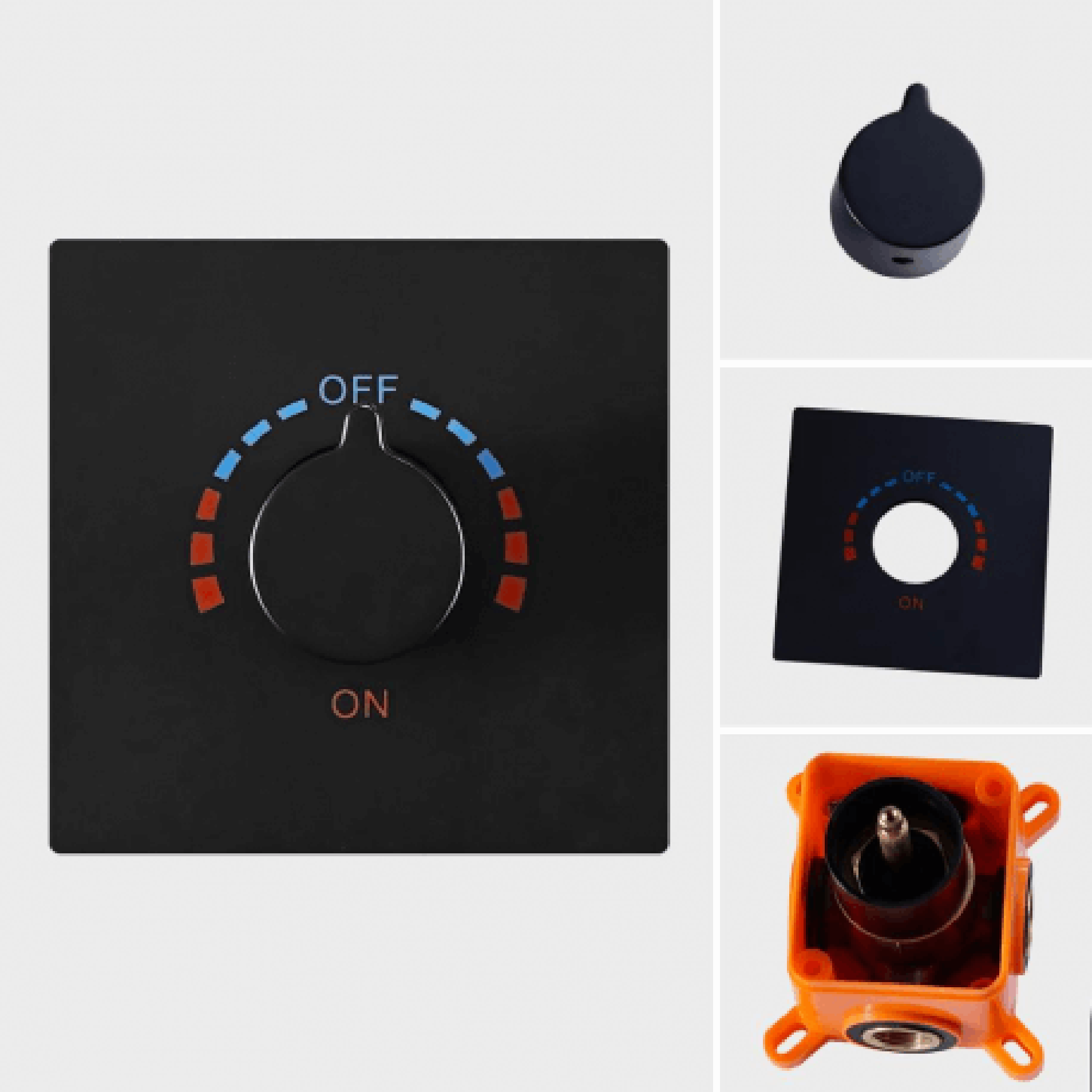

Package includes valve, faceplate
