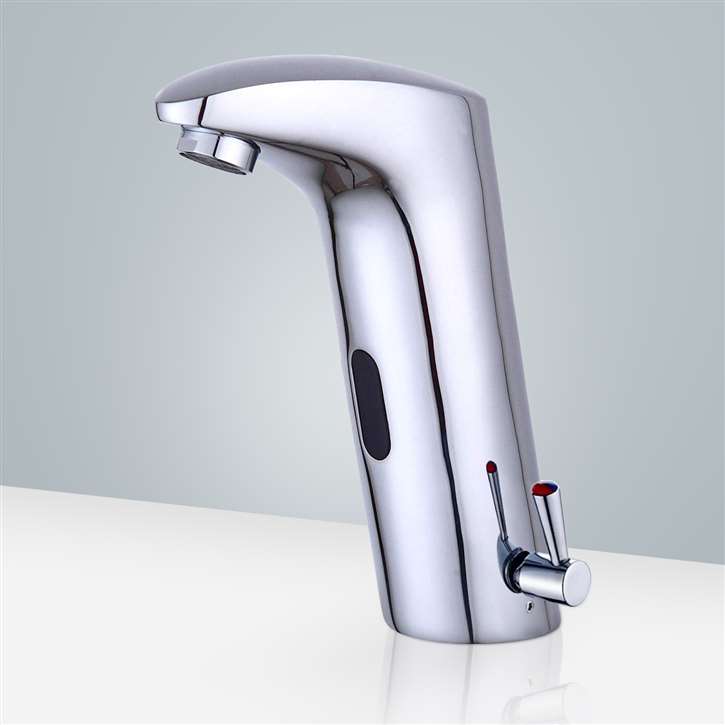

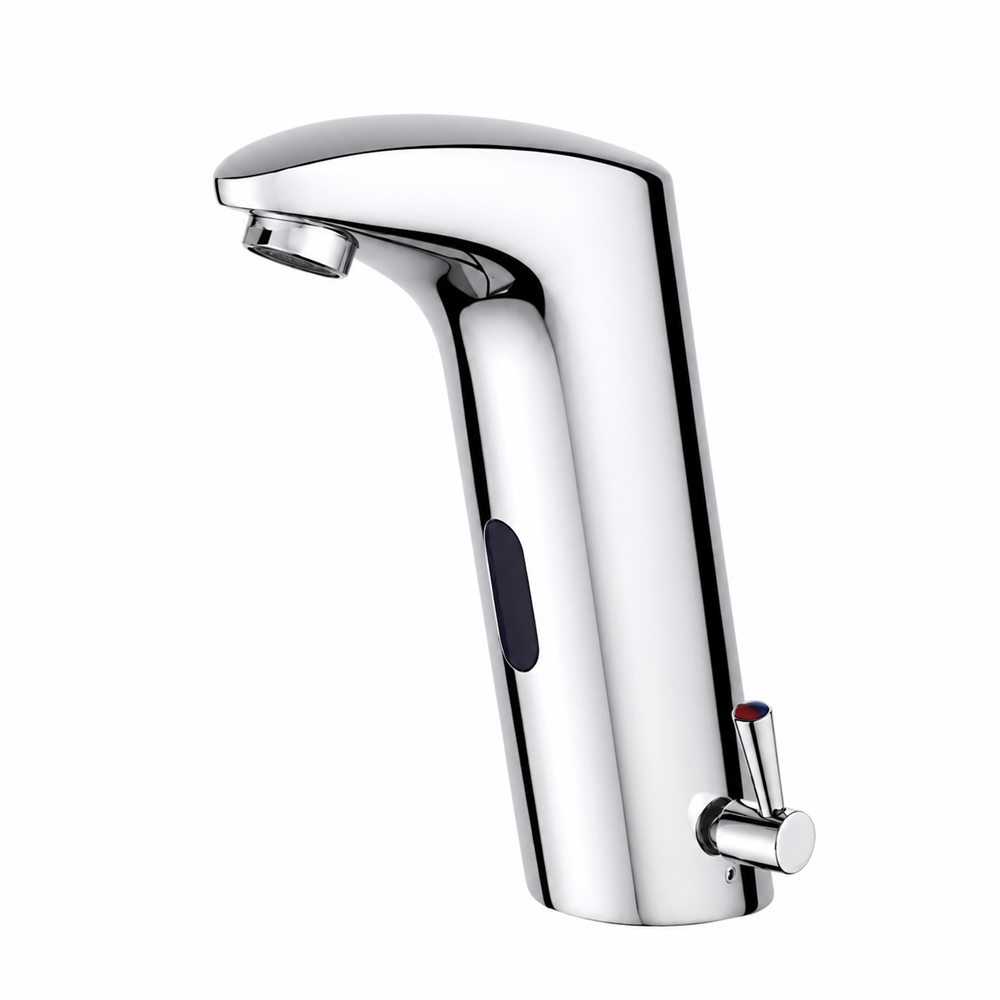

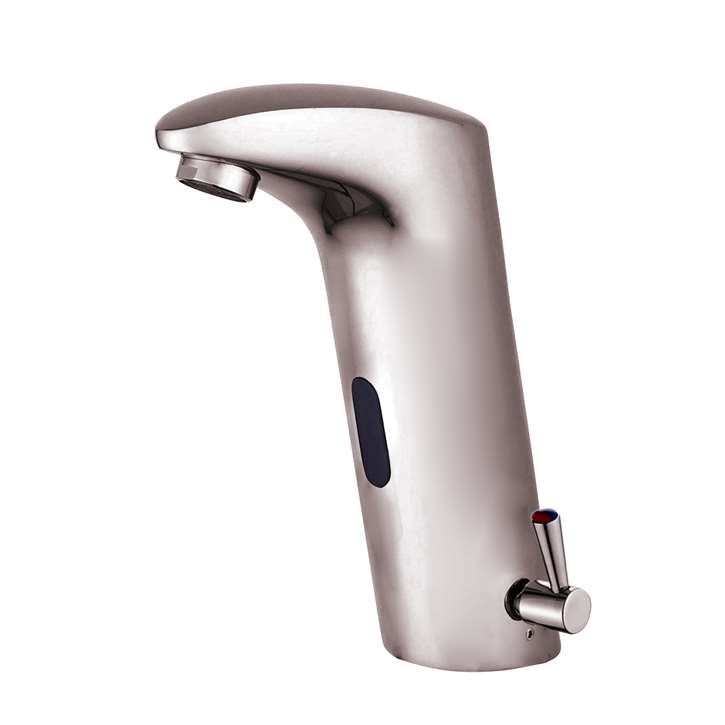

Fontana Milan Commercial Temperature Control Automatic Motion Faucet
The Milan sensor faucets are anti-erosion, anti-abrasion and high strength. Premium touchless hardwired and battery-operated faucet. Premium touchless hardwired and battery-operated faucet. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Fits all US standard plumbing. Uses 4AA Alkaline Batteries (purchase separately).Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and shopping malls. Fits all standard US plumbing.
Fontana Milan Commercial Temperature Control Automatic Motion Faucet Features:
- Brand Name: FontanaShowers®
- Model Number: FS-D508DC-B
- Type: Touchless Bathroom Faucet
- Water Pressure: 0.05Mpa - 0.7Mpa
- Finish: Chrome
- Hot and Cold Water: Optional
- Valve Type: Solenoid valve
- Installation Type: Deck Mount
- Construction: Solid Brass
- Control Box : Included- Hardwired & Battery Operated
- Supply Hoses: Included
- Other Features: Vandal resistant
- Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
- Flow Rate: Built in Aerator Available from .5 GPM - 1.5 GPM
- Flow Rate Special: Customizable can be provided for any Water Flow Requirement
- Sensor Range: Adjustable
- Mounting Hardware: Included
- Power Supply: AC110V And DC6V
- Batteries Included: No
- Mixing Valve: Water Temperature Mixing Valve Available
- Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
- Mixing Valve: Water Temperature Mixing Valve Available
- Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
- Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
- Mounting Type: Deck Mount
- Body Material: Brass
- Style: Contemporary
- Ambient Temperature: 1 - 45° / 33.8 -113 °F
- Faucet height: 6.6" (167.64 mm)
- Spout height: 5.39" (136.90 mm)
- Sensing distance: 9.84" (25cm)
- Time delay: 0.5 seconds
- Operation duration: 60 seconds
- Usage: Commercial
- ADA Compliant
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout
|
Chrome Plated Solid Brass
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
Battery life expectancy
|
250,000 cycles
|
Solenoid valve
|
6 Volt magnet latching
|
Working Water Pressure
|
1 PSI -100 PSI
|
Supply Inlet Size
|
1/2” NPT Male
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
Microprocessor
|
Digital, Pug And Play
|
Sensing Range
|
2” to 6”
|
Response Time
|
0.3 Second
|
Shut-Off Delay Time
|
2 Seconds
|
Anti vandalism maximum Running Time
|
60 Seconds
|
Particle filter size
|
50
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
