Product Specifications

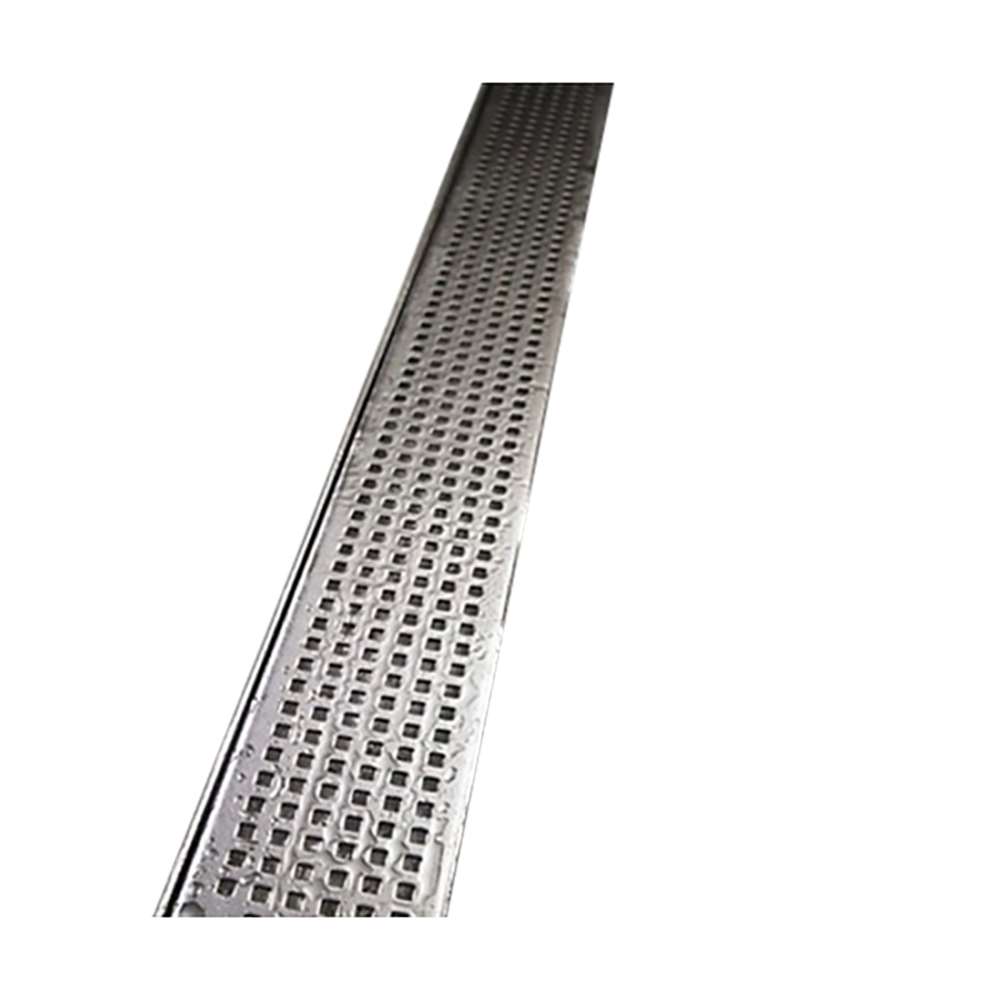

• Foot friendly grate with anti-slip nodules.
• Channel Width 3.3" (84mm)
• Intake sq. in: 17.71
• Complete Set Channel Body, Grate cover, Lifting Key, Adjustable Feet, Hardware
• Plain Body - To be use in wood joist application with CPE membrane
• Flange Body - To be use with "hot-mop" painted or liquid membranes

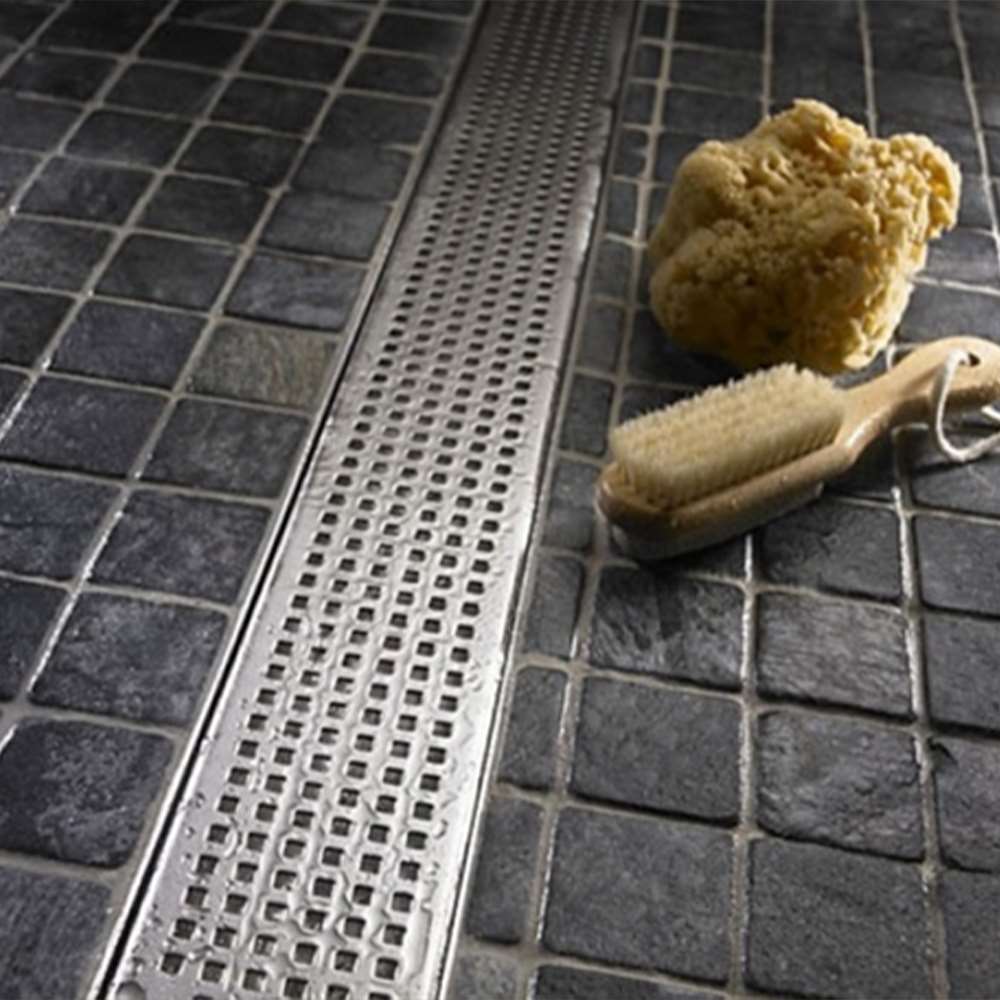

• Linear Shower Channel Drains Provide Improved Function and Good Looks
• Length : 28", 32", 36", 40", 48", 55"
• Depth: 5"
• Height: 5"
• Shipping Weight: 12 oz.
• Materials: Stainless Steel
• Category: Bath Products
• Style: Contemporary

• 2" diameter central vertical outlet
• Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
• Bodies are fully welded and leak tested prior to dispatch.

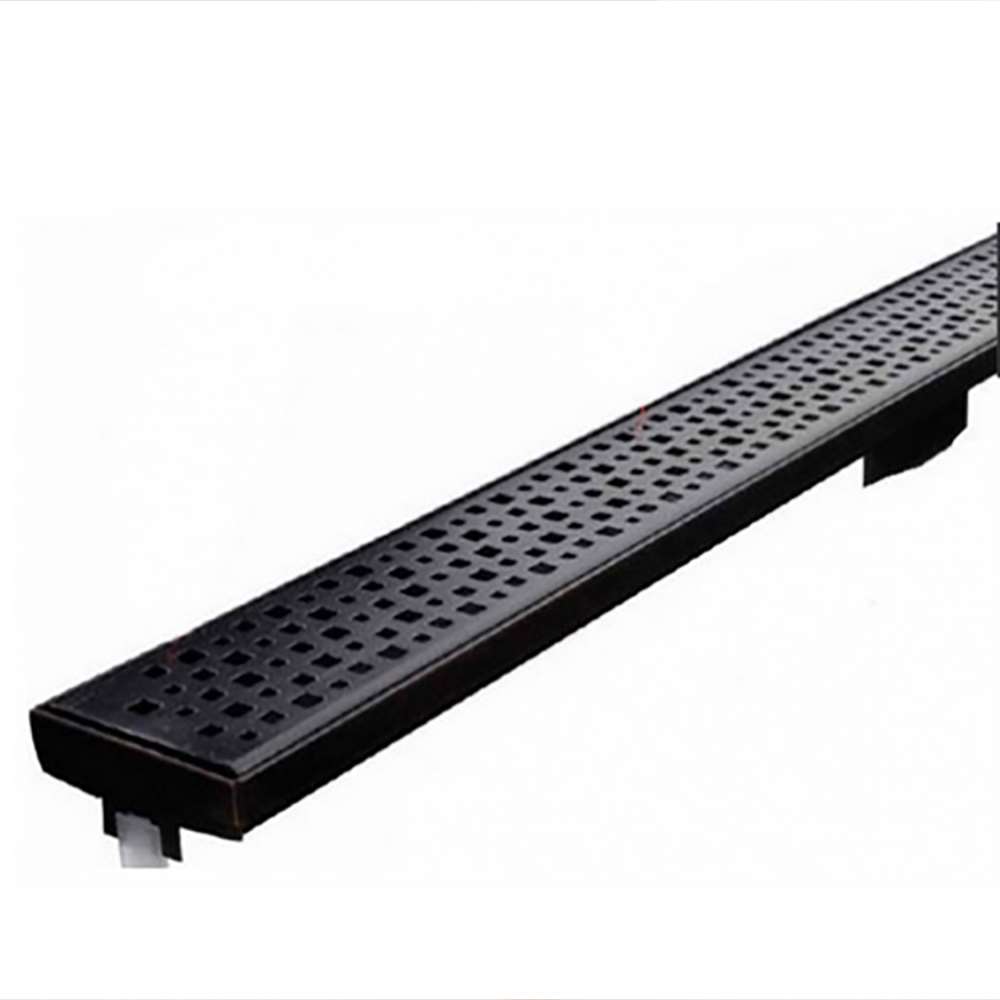

• Oil-rubbed bronze finish available
• Channel Wisth 3.3" (84mm) Plastic support feet aid installation.
• Optional accessories include plumbing connectors, water activated LED light and debris strainer.
