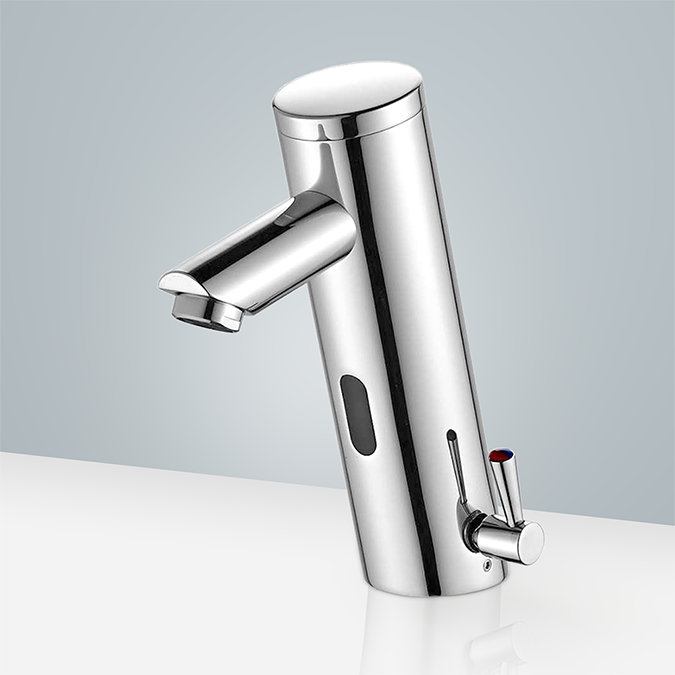

Platinum Commercial Automatic Temperature Control Thermostatic Sensor Tap B505 Solid Brass Construction - (Available in Oil Rubbed Bronze)
Touchless faucets provide a better user experience in commercial bathroom settings. Platinum Commercial Temperature Control Automatic Touchless Sensor Faucet with Mixing Valve
|
Automatic Temperature Control Faucet with Integral Water Mixing Valve, Chrome Finish
The Platinum Sensor Faucet electronically controlled faucet eliminates the need to touch or turn
handles. Through the use of sensor beams, the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is
nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Bathroom sensor faucets are anti-erosion, anti-abrasion, and high strength. Avoid contamination and cross-contamination, and minimize waste of water by using this smart automatic faucet. This smart faucet is not only hygienic but will immediately reduce water waste by eliminating unnecessary and unattended water flow.
|
|
- Fits all standard US plumbing.
- Uses 4AA Alkaline Batteries (purchase separately).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi
- Sensor Faucet Applications: Commercial.
- Touchless Operation
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Easy to Install - Instructions Included
- Water-resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- ADA Compliant
- Can be installed easily in new or upgraded retrofit commercial restrooms.
- Can easily be installed in new or retrofit applications
- Usage: Commercial
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing
|

|
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
Platinum Temperature Control Sensor Faucet Special Features:
- Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; diagnostic indicators for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant
- The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
- Diameter of inlet pipe DN15
- Diameter of outlet pipeDN15
- Water Flow Rate: 1.3 GPM (gallons-per-minute)
- Power DC.6V
- Detection Zone Factory set 25cm/10" (based on standard inductive board)
- Ambient Temperature 1 - 45 ℃ / 33.8 -113 °
- Degree of protection by enclosure 1P56
- Usage: Commercial
|
|
Sensor Faucet Specification:
|
Overall Height
|
7" (measured from the countertop to the highest part of the faucet)
|
|
Spout Height
|
3-1/2" (measured from the countertop to the spout outlet)
|
|
Spout Reach
|
4" (measured from the center of the faucet base to the center of the spout outlet)
|
|
Mounting Type
|
Single hole
|
|
Number of Holes
|
Required for Installation: 1
|
|
Faucet Centers (Distance Between Handle Installation Holes)
|
Single Hole
|
|
Flow Rate
|
1.3 GPM (gallons-per-minute)
|
|
Maximum Deck Thickness
|
1-5/8"
|
|
Infrared sensor operation with temperature control.
|
Sensor Faucet Special specification
- The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms.
Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
- The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding.
Mixing the water at the desired temperature at the point of use allows storing the water enough cold and hot to prevent scalding.
- Installation is a child's game, almost like a manual faucet
- Easy servicing
- Version with mixer to adjust the temperature.
- The Oil Rubbed Bronze finish will not fade, tarnish or corrode for the lifetime of the faucet.
- 6V battery or electrical connection version available
- Solenoid valve inside the product
- Operates with low and high pressures (0.5 to 7Bar)
- Range adjustment
- Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
