Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is Chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Faucet height:
7.87" (200mm)
-
Spout Length:
4.13" (105mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Power Consumption:
0.5MW
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
US standard water supply pipe size:
DN15 (G1/2")
-
Ambient temperature range:
0.1 - 45ºC
-
Sensing distance:
9.84" (25cm)
-
Time delay:
0.5 seconds
-
Operation duration:
Power will automatically cut off after continuous use for 60 seconds
-
Pop-up drain:
No
-
Color:
Chrome Finish
Infrared sensor operated, touch-free operation
Advanced energy-saving design for long-lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
For longevity of lifetime and to stand against daily wear and tear the Chrome tone finish used is PVD coatings
Sensor Faucet Advantage
Conserves water
Saves energy during the water heating process
Hygienic, no-touch activation
Easy installation
Durable, solid all-brass construction
Built-in filter
ADA compliant Ideal for use by disabled people
Vandal resistant
Waterproof Components

FontanaShowers® Product Warranty Information

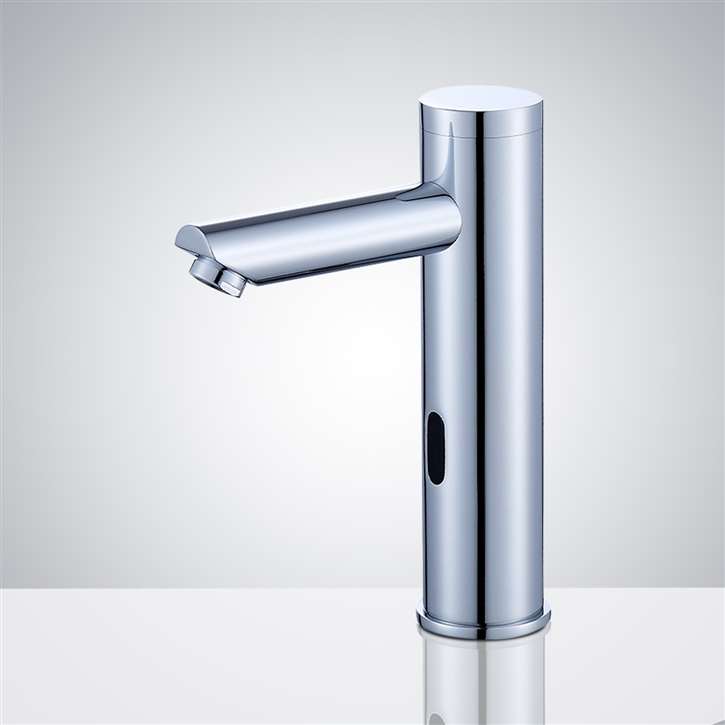

Solo Chrome Tone Touchless Motion Activated Sink Faucet
|
Our Solo Chrome Polished Sensor faucet is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming chrome color. Its built-in feature of 30 second shut off makes it more suitable for public restroom places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also avoid contamination and cross contamination, minimize waste of water by using this smart automatic faucet and touchless soap dispenser. In any high-traffic restrooms avoiding contact with manual faucet helps avoid contact with germs that are collecting on handels and this smart faucet not only hygienic but will immediately reduces water waste by eliminating unnecessary and unattended water flow.The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.
|
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This Sensor Faucet Applications; Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
Design and Build
