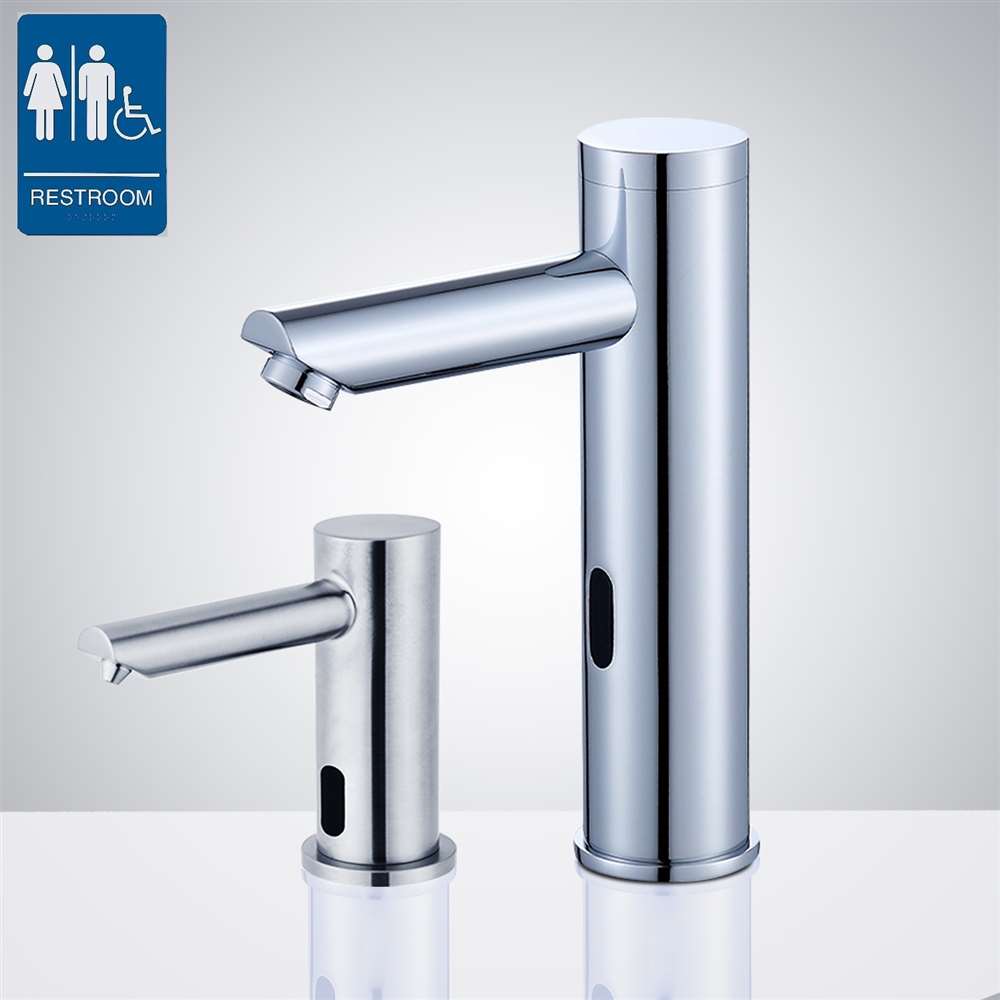

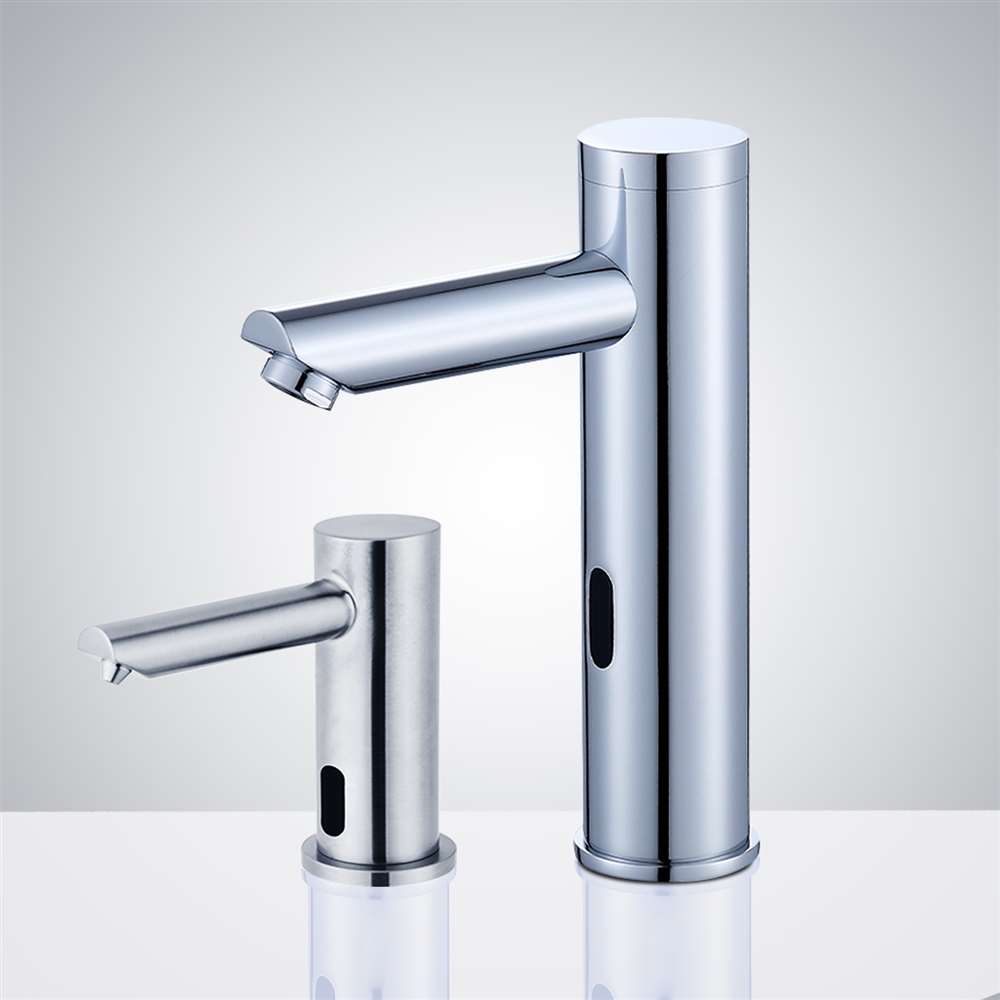

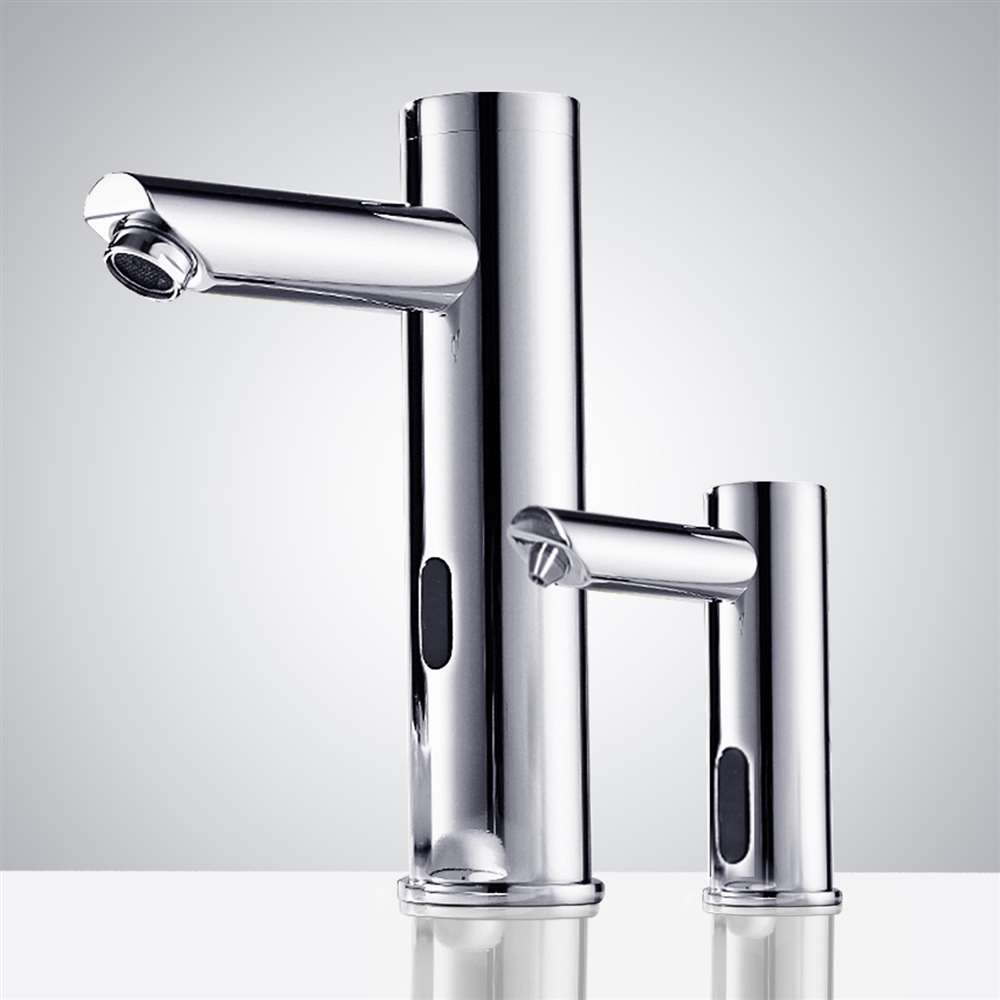

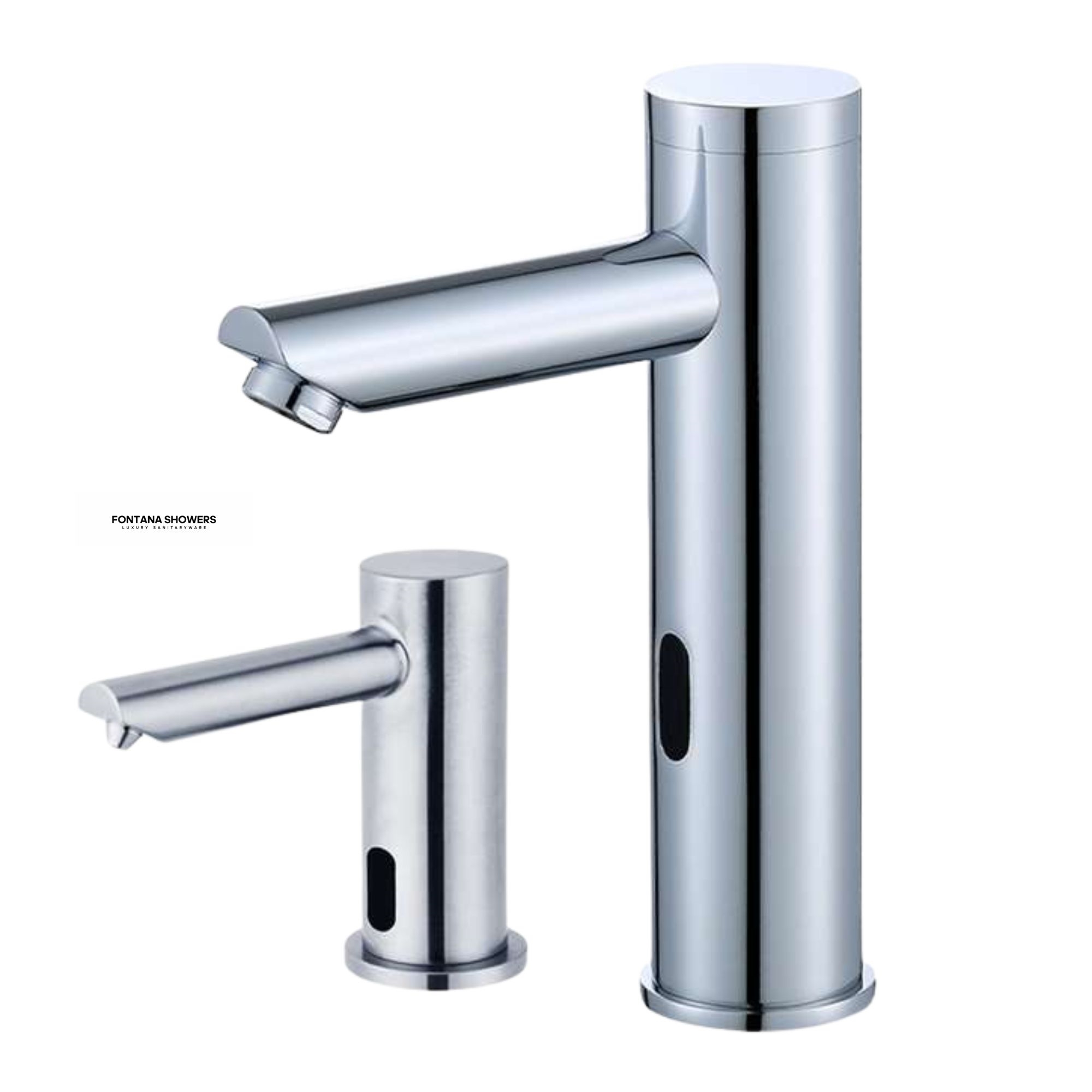

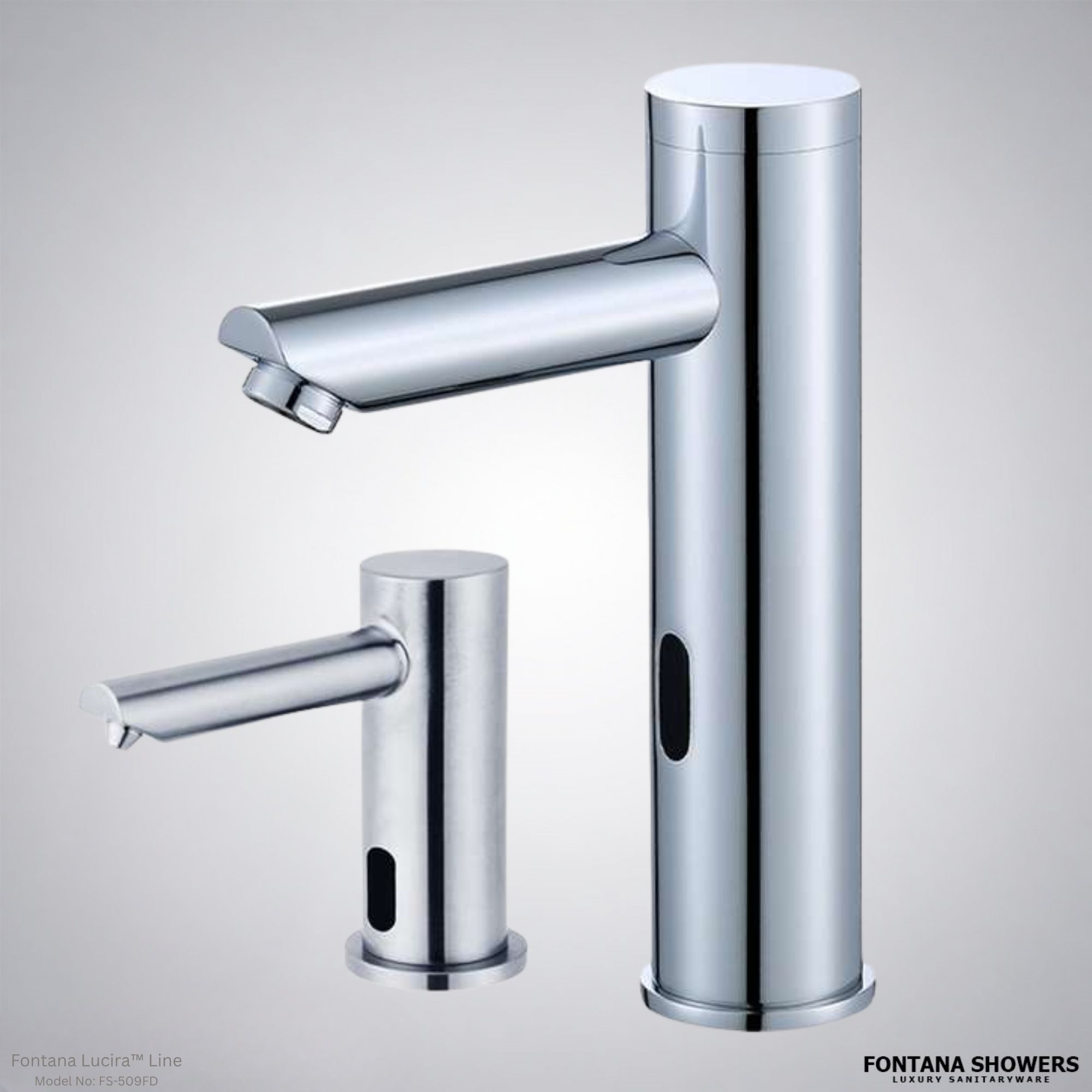

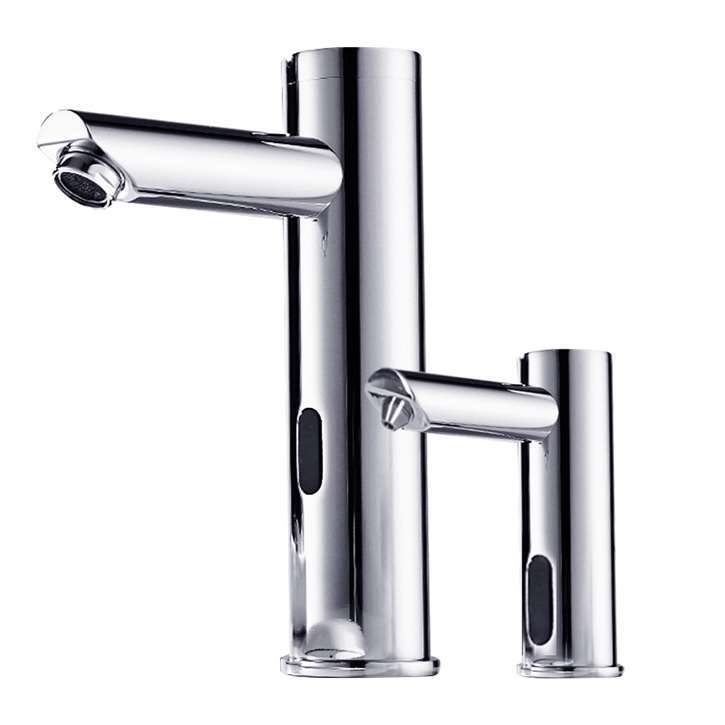

 Solo Chrome Touchless Motion Activated Sink Faucet and Soap Dispenser
Our Solo Chrome Polished Sensor faucet and Soap Dispenser Combination is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming chrome color. Its built-in feature of 30 second shut off makes it more suitable for public restroom places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet and s oap dispenser combination . Touchless Faucets Help Stops the Spread Covid-19 and this smart faucet not only hygienic but will immediately reduces water waste by eliminating unnecessary and unattended water flow.The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-

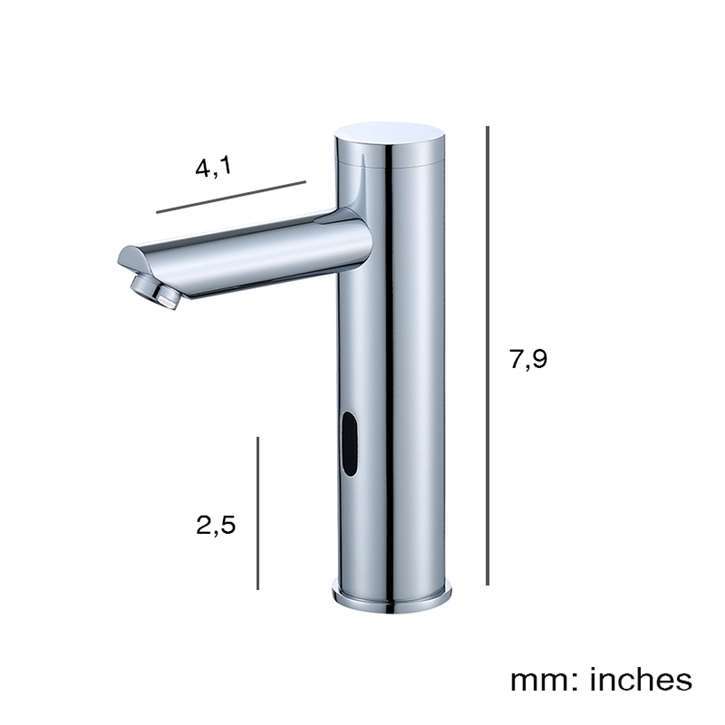

Faucet height:
7.9" (200.66mm)
-
Spout Length:
4.13" (105mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Power Consumption:
0.5MW
- Finish: Chrome
- Model Number: FS-509FD
- Hot and Cold Water: Optional
- Valve Type: Solenoid Valve
- Material: Solid Brass
- Installation Type: Deck Mount
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
US standard water supply pipe size:
DN15 (G1/2")
-
Ambient temperature range:
0.1 - 45ºC
-
Sensing distance:
9.84" (25cm)
-
Time delay:
0.5 seconds
-
Operation duration:
Power will automatically cut off after continuous use for 60 seconds
-
Pop-up drain:
No
-
ADA Compliant

|
Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory! Sensor Faucet finish is Chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
|
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9

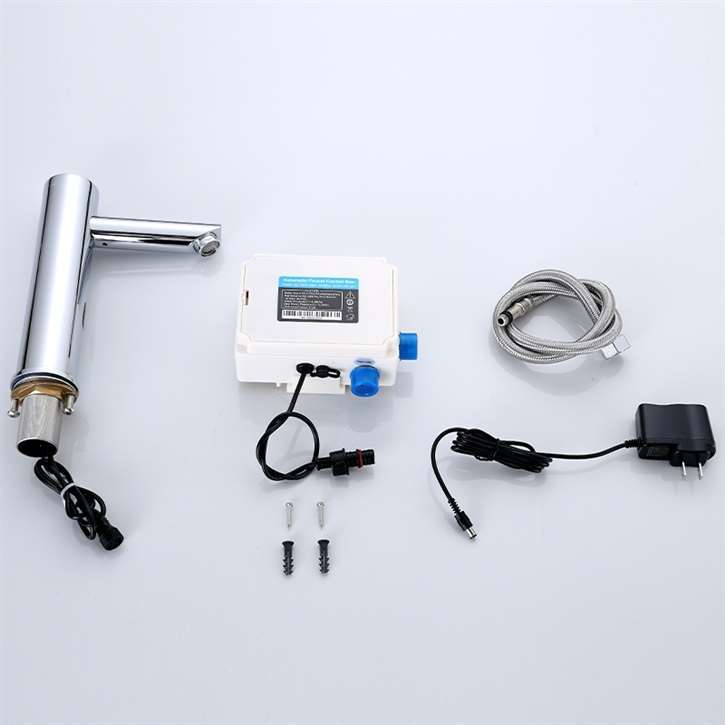

- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Touchless Motion Activated Sink Faucet Features
- Fits all US standard plumbing.
- Uses 4AA Alkaline Batteries (purchase separately).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
- Motion detection touchless sensor faucet operation
- Commercial and residential use
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
- Solid Brass Construction, Chrome Finish
- Easy to Install - Instructions Included
- Water resistant solenoid enclosure
- Advanced energy saving design for long lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply:AC110V And DC6V (batteries not included)
- AC/DC power option.
- ADA Compliant.
- Easily can be installed in new or retrofit applications.
Solo Sensor Activated Faucet and Soap Dispenser Special Features
- Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
- Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
- Meaning of the codes are described in the installation instructions.
- Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- Faucet can be mount to any sink surface.
- ADA Compliant.
- Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
- Infrared sensor operated, touch-free operation
- Advanced energy saving design for long lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
- For longevity of life time and to stand against the daily wear and tear the chrome finish used is PVD coatings
Sensor Faucet Advantage
- Conserves water
- Saves energy during water heating process
- Hygienic, no-touch activation
- Easy installation
- Durable, solid all-brass construction
- Built-in filter
- ADA complaint Ideal for use by disabled people
- Vandal resistant
- Waterproof Components
|
|
|
|
|
|
|
Good Sensor Set, works good
