Solo Tall Touchless Commercial Automatic Sensor Faucet Built in Hot & Cold in Chrome
Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
Specifications :
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Water Pressure:
0.05Mpa - 0.7Mpa
- Power Consumption:
0.5MW
- Power: DC.6V
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
- Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
- US standard water supply pipe size: DN15 (G1/2")
-
Water supply pipe size:
DN15
- Color: Chrome
- Manufacturer Warranty: 10-Years
- Ambient temperature range: 0.1 - 45ºC
- Sensing distance: 9.84" (25cm)
- Time delay: 0.5 seconds
- Operation duration: Power will automatically cut off after continuous use for 60 seconds
- Sensing distance: 9.84" (25cm)
Features
- Infrared sensor operated, touch-free operation
- Advanced energy-saving design for long-lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
Sensor Tap Advantage
- Conserves water
- Saves energy during the water heating process
- Hygienic, no-touch activation
- Easy installation
- Durable, solid all-brass construction
- Built-in filter
- ADA compliant Ideal for use by disabled people
- Vandal resistant
- Waterproof Components

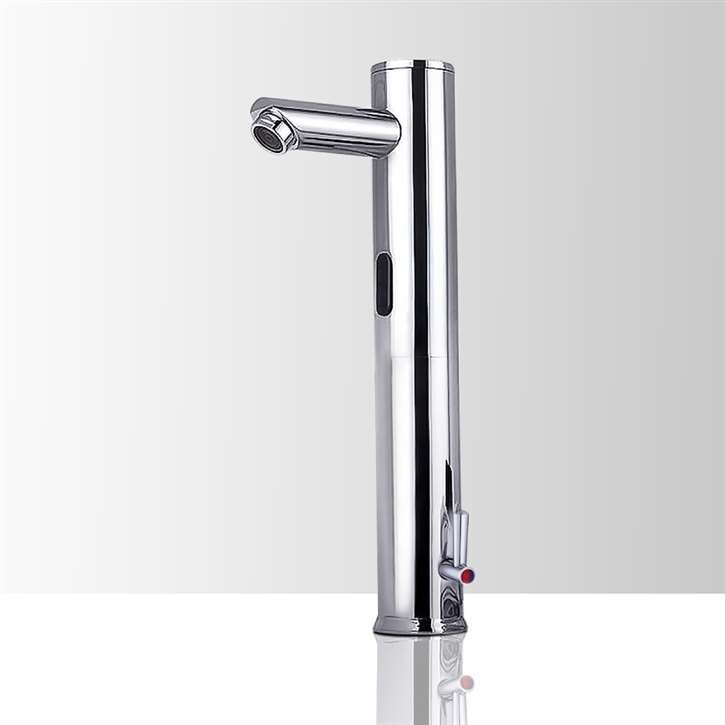

Solo Commercial Automatic Touchless Sensor Faucet
|
Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
|
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This Sensor Faucet Applications; Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed All the hardware necessary for satisfactory installation
Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
Better than expected
