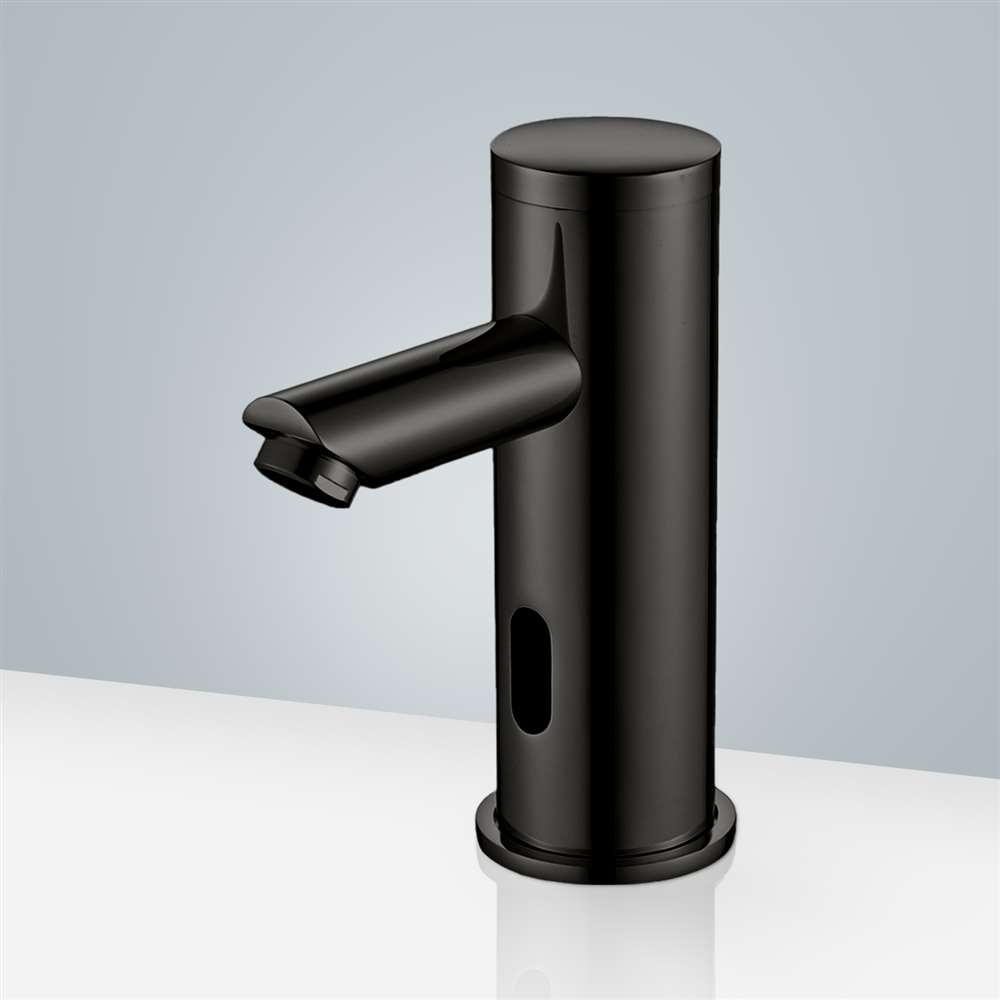

Solo Commercial Automatic Touchless Sink Faucet in Matte Black
The Solo touchless sensor faucet provides the best way to save water by automatically turning the water on and off by means of a motion sensor. At the same time, it reduces the risk of germ contamination, offering a completely contactless operation of the faucet. The delivery includes all the necessary accessories for mounting. The standard pipe connections and power supply (AC110V and DC6V) make the installation easy in both new and existing applications.
Specifications for The Solo Motion Activated Sensor Faucet
-
Diameter of inlet pipe:
DN15
-
Diameter of outlet pipe:
DN15
-
Faucet height:
7.87" (200mm)
-
Spout length:
4.13" (105mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power:
DC.6V
-
Detection Zone:
Factory set 0.94" (25cmbased on standard inductive board)
-
Ambient Temperature:
1 - 45° / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
US standard water supply pipe size:
DN15 (G1/2")
-
Ambient temperature range:
0.1 - 45ºC
-
Sensing distance:
25cm
-
Time delay:
0.5 seconds
-
Operation duration:
power will automatically cut off after continuous use for 60 seconds
-
Color:
Matte Black - Finish will not fade or corrode over time.
Solo Sensor Faucet Features
- Infrared sensor operated, touch-free operation
- Advanced energy-saving design for long-lasting battery life
- Waterproof sensor
- Battery low LED light indicator
- Sensing distance adjusted automatically
- Long life durable body
- Advanced circuit design saves electricity and water
Sensor Faucet Advantage
- Conserves water
- Saves energy during the water heating process
- Hygienic, no-touch activation
- Easy installation
- Durable, solid all-brass construction
- Built-in filter
- ADA compliant Ideal for use by disabled people
- Vandal resistant
- Waterproof Components
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom!
This Sensor Faucet Applications; Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout
|
Chrome Plated Solid Brass
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
Battery life expectancy
|
250,000 cycles
|
Solenoid valve
|
6 Volt magnet latching
|
Working Water Pressure
|
1 PSI -100 PSI
|
Supply Inlet Size
|
1/2” NPT Male
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
Microprocessor
|
Digital, Pug And Play
|
Sensing Range
|
2” to 6”
|
Response Time
|
0.3 Second
|
Shut-Off Delay Time
|
2 Seconds
|
Anti vandalism maximum Running Time
|
60 Seconds
|
Particle filter size
|
50
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
 |
